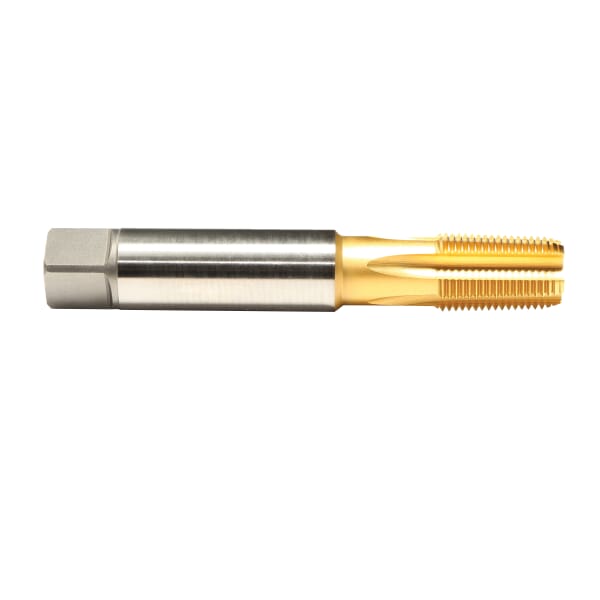

Emuge CW181400.5782 Rekord 2-KEG STEEL CW181400 Form C Long Reinforced Shank Pipe Tap, 0 deg Helix, 1/16-27 Thread
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Emuge CW181400.5782 Rekord 2-KEG STEEL CW181400 Form C Long Reinforced Shank Pipe Tap, 0 deg Helix, 1/16-27 Thread
ManufacturerEmuge
Part #826504152
MFG #CW181400.5782
Emuge Pipe Tap, Form C Long Reinforced Shank, Series: Rekord 2-KEG STEEL CW181400, Measurement System: Imperial, 1/16-27 Thread, NPTF Thread Standard, 0 deg Helix Angle, Modified Bottoming Chamfer, 0.69 in Thread Length, 3-1/2 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 5/16 in Shank Diameter, 0.234 in Square, HSS-E, TiN Coated
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Emuge-Franken
Chamfer Type:Â Modified Bottoming
Country of Origin:Â DE
Cutting Direction:Â Right Hand
Finish/Coating:Â TiN Coated
Helix Angle:Â 0 deg
Manufacturer Name:Â Emuge-Franken
Material:Â HSS-E
Measurement System:Â Imperial
Number of Flutes:Â 4
Overall Length:Â 3-1/2 in
Series:Â Rekord 2-KEG STEEL CW181400
Shank Diameter:Â 5/16 in
Square Size:Â 0.234 in
Thread Length:Â 0.69 in
Thread Size:Â 1/16-27
Thread Standard:Â NPTF
Type:Â Form C Long Reinforced Shank
NPTF American tapered pipe thread per ANSI B1.20.3 for threads without dryseal material
Standard taper 1:16
TiN coated for additional tool life
DIN length/ANSI shank standard dimensions
Longer length than ANSI dimension taps
Emuge Pipe Tap, Form C Long Reinforced Shank, Series: Rekord 2-KEG STEEL CW181400, Measurement System: Imperial, 1/16-27 Thread, NPTF Thread Standard, 0 deg Helix Angle, Modified Bottoming Chamfer, 0.69 in Thread Length, 3-1/2 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 5/16 in Shank Diameter, 0.234 in Square, HSS-E, TiN Coated
DIN/ANSI Standard|ANSI B1.20.3|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Manufacturer Name:Â Emuge-Franken
Chamfer Type:Â Modified Bottoming
Country of Origin:Â DE
Cutting Direction:Â Right Hand
Finish/Coating:Â TiN Coated
Helix Angle:Â 0 deg
Manufacturer Name:Â Emuge-Franken
Material:Â HSS-E
Measurement System:Â Imperial
Number of Flutes:Â 4
Overall Length:Â 3-1/2 in
Series:Â Rekord 2-KEG STEEL CW181400
Shank Diameter:Â 5/16 in
Square Size:Â 0.234 in
Thread Length:Â 0.69 in
Thread Size:Â 1/16-27
Thread Standard:Â NPTF
Type:Â Form C Long Reinforced Shank
NPTF American tapered pipe thread per ANSI B1.20.3 for threads without dryseal material
Standard taper 1:16
TiN coated for additional tool life
DIN length/ANSI shank standard dimensions
Longer length than ANSI dimension taps
Emuge Pipe Tap, Form C Long Reinforced Shank, Series: Rekord 2-KEG STEEL CW181400, Measurement System: Imperial, 1/16-27 Thread, NPTF Thread Standard, 0 deg Helix Angle, Modified Bottoming Chamfer, 0.69 in Thread Length, 3-1/2 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 5/16 in Shank Diameter, 0.234 in Square, HSS-E, TiN Coated
DIN/ANSI Standard|ANSI B1.20.3|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
