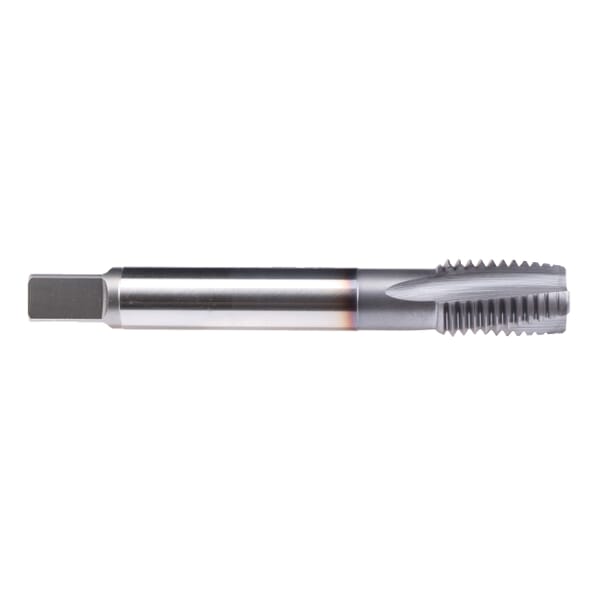

Name: Emuge C0309601.0124 Rekord 2C-TI C0309601 Form B Slow Reduced Shank Spiral Flute Tap, Left Hand Cutting, M24x3 Thread, Plug Chamfer, Left Hand Flute Direction, 3 Flutes, TiCN, HSS-E
Brand: Emuge-Franken
SKU: EMUGE_Q1_2019_006119
Availability: OutOfStock

Emuge-Franken

Emuge C0309601.0124 Rekord 2C-TI C0309601 Form B Slow Reduced Shank Spiral Flute Tap, Left Hand Cutting, M24x3 Thread, Plug Chamfer, Left Hand Flute Direction, 3 Flutes, TiCN, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge C0309601.0124 Rekord 2C-TI C0309601 Form B Slow Reduced Shank Spiral Flute Tap, Left Hand Cutting, M24x3 Thread, Plug Chamfer, Left Hand Flute Direction, 3 Flutes, TiCN, HSS-E

ManufacturerEmuge

Part #826503350

MFG #C0309601.0124

Emuge Spiral Flute Tap, Form B Slow Reduced Shank, Series: Rekord 2C-TI C0309601, Measurement System: Metric, Coarse, M24x3, Plug Chamfer, 3 Flutes, HSS-E, TiCN, Class of Fit: 6HX, Left Hand Cutting, 34 mm Thread Length, 160 mm Overall Length, 18 mm Shank Dia, 126 mm Shank Length, Left Hand Flute Direction, Steel, Stainless Steel, Cast Iron, Copper Alloys, Titanium Alloys, Nickel Base Alloys and Cobalt Base Alloys Material Application, No Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Left Hand

Finish/Coating: TiCN, TiCN Coated

Flute Direction: Left Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron, Copper Alloys, Titanium Alloys, Nickel Base Alloys and Cobalt Base Alloys

Measurement System: Metric

Number of Flutes: 3

Overall Length: 160 mm

Series: Rekord 2C-TI C0309601

Shank Diameter: 18 mm

Shank Length: 126 mm

Thread Length: 34 mm

Thread Size: M24x3

Thread Standard: Coarse, M

Through Coolant (Yes/No): No

Type: Form B Slow Reduced Shank

TiCN coated for wear resistance and additional tool life
DIN/DIN standard dimensions on overall length and shank size

DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
