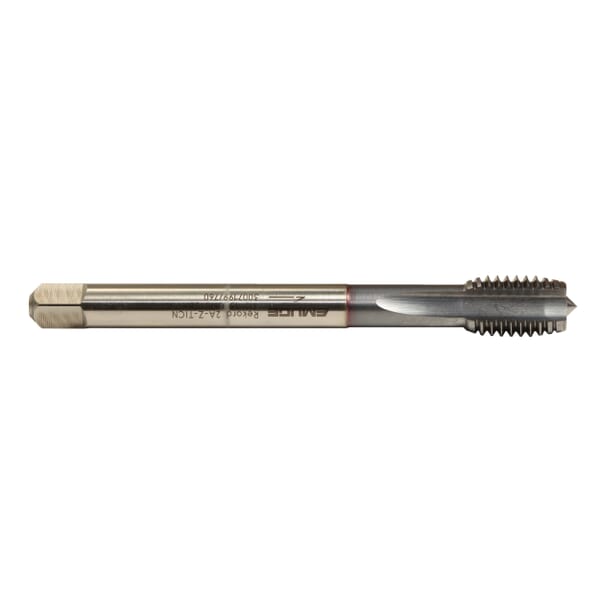

Emuge C0109401.0145 Rekord 2A-Z C0109401 Form C Reduced Shank Straight Flute Machine Tap, Right Hand Cutting, M45x4.5 Thread, Modified Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826503252

MFG #C0109401.0145

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Rekord 2A-Z C0109401, Measurement System: Metric, Coarse Thread Standard, M45x4.5 Thread, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 58 mm Thread Length, 220 mm Overall Length, 36 mm Shank Diameter, 162 mm Shank Length, Steel, Cast Iron, Aluminum Alloys, Copper Alloys and Synthetics Material Application, No Through Coolant

$1,494.01

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Aluminum Alloys, Copper Alloys and Synthetics

Measurement System: Metric

Number of Flutes: 4

Overall Length: 220 mm

Series: Rekord 2A-Z C0109401

Shank Diameter: 36 mm

Shank Length: 162 mm

Thread Length: 58 mm

Thread Size: M45x4.5

Thread Standard: Coarse

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

Rekord A-Z is a straight flute for short chipping materials
Z designates that the tap is designed for CNC controlled machines with synchronous feed ability
TiCN coated for additional wear resistance
DIN/DIN standard dimensions for overall length and shank size

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Rekord 2A-Z C0109401, Measurement System: Metric, Coarse Thread Standard, M45x4.5 Thread, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 58 mm Thread Length, 220 mm Overall Length, 36 mm Shank Diameter, 162 mm Shank Length, Steel, Cast Iron, Aluminum Alloys, Copper Alloys and Synthetics Material Application, No Through Coolant

DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Aluminum Alloys, Copper Alloys and Synthetics

Measurement System: Metric

Number of Flutes: 4

Overall Length: 220 mm

Series: Rekord 2A-Z C0109401

Shank Diameter: 36 mm

Shank Length: 162 mm

Thread Length: 58 mm

Thread Size: M45x4.5

Thread Standard: Coarse

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

Rekord A-Z is a straight flute for short chipping materials
Z designates that the tap is designed for CNC controlled machines with synchronous feed ability
TiCN coated for additional wear resistance
DIN/DIN standard dimensions for overall length and shank size

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Rekord 2A-Z C0109401, Measurement System: Metric, Coarse Thread Standard, M45x4.5 Thread, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 58 mm Thread Length, 220 mm Overall Length, 36 mm Shank Diameter, 162 mm Shank Length, Steel, Cast Iron, Aluminum Alloys, Copper Alloys and Synthetics Material Application, No Through Coolant

DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
