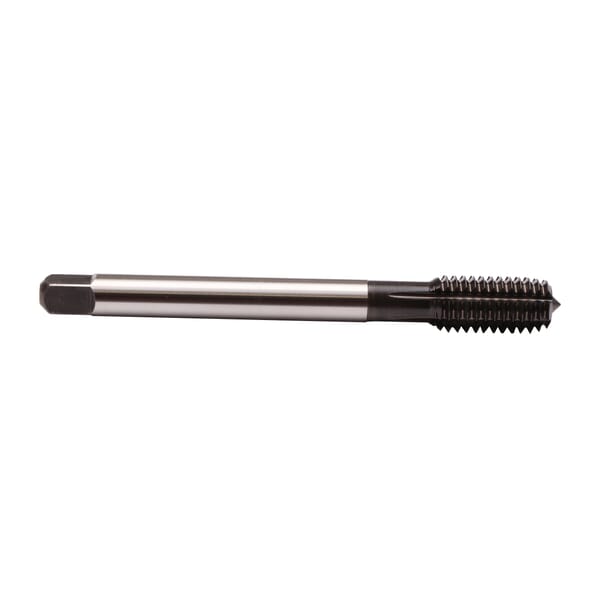

Emuge CU921000.5047 Druck 2-STEEL-SN CU921000 Form C Reduced Shank Thread Forming Tap, 1/2-20 Thread

ManufacturerEmuge

Part #826502029

MFG #CU921000.5047

Emuge Thread Forming Tap, Form C Reduced Shank, Series: Druck 2-STEEL-SN CU921000, Measurement System: Imperial, 1/2-20 Thread, UNF Thread Standard, Modified Bottoming Chamfer, 0.866 in Thread Length, 3.937 in Overall Length, Right Hand Cutting Direction, Class of Fit: 2BX, 0.367 in Shank Diameter, 0.4783 in Tap Drill, 0.275 in Square, HSS-E, NT Coated

$98.94

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: NT Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Overall Length: 3.937 in

Series: Druck 2-STEEL-SN CU921000

Shank Diameter: 0.367 in

Square Size: 0.275 in

Tap Drill Size: 0.4783 in

Thread Length: 0.866 in

Thread Size: 1/2-20

Thread Standard: UNF

Type: Form C Reduced Shank

The druck STEEL roll form tap is a universal design for the chipless production of internal threads, blind and through hole
Lubrication grooves improve surface finish
NT nitrided surface hardening process for wear resistance
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Thread Forming Tap, Form C Reduced Shank, Series: Druck 2-STEEL-SN CU921000, Measurement System: Imperial, 1/2-20 Thread, UNF Thread Standard, Modified Bottoming Chamfer, 0.866 in Thread Length, 3.937 in Overall Length, Right Hand Cutting Direction, Class of Fit: 2BX, 0.367 in Shank Diameter, 0.4783 in Tap Drill, 0.275 in Square, HSS-E, NT Coated

DIN/ANSI Standard|ASME B1.1|DIN 2174|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
