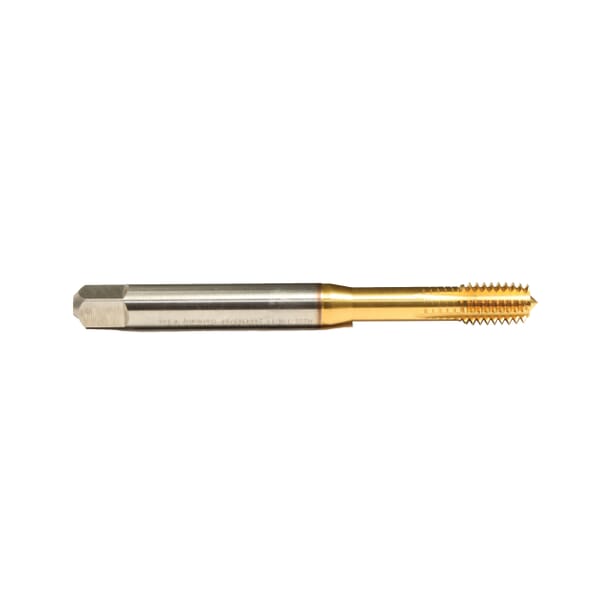

Emuge BU92F000.5041 Druck 1-Z-SNBU92F000 Form C Reinforced Shank Thread Forming Tap, #10-32 Thread

ManufacturerEmuge

Part #826501281

MFG #BU92F000.5041

Emuge Thread Forming Tap, Form C Reinforced Shank, Series: Druck 1-Z-SNBU92F000, Measurement System: Imperial, #10-32 Thread, UNF Thread Standard, Modified Bottoming Chamfer, 0.591 in Thread Length, 2.756 in Overall Length, Right Hand Cutting Direction, Class of Fit: 2BX, 0.194 in Shank Diameter, 1.77 in Shank Length, 0.1752 in Tap Drill, 0.152 in Square, HSS-E, TiN-T1 Coated

$74.24

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN-T1 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Overall Length: 2.756 in

Series: Druck 1-Z-SNBU92F000

Shank Diameter: 0.194 in

Shank Length: 1.77 in

Square Size: 0.152 in

Tap Drill Size: 0.1752 in

Thread Length: 0.591 in

Thread Size: #10-32

Thread Standard: UNF

Type: Form C Reinforced Shank

The druck Z roll form tap is a universal design for the chipless production of internal threads, blind and through hole
Lubrication grooves
TiN-T1 coating special multi-layer coatings helps to achieve considerable tool life increases
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Thread Forming Tap, Form C Reinforced Shank, Series: Druck 1-Z-SNBU92F000, Measurement System: Imperial, #10-32 Thread, UNF Thread Standard, Modified Bottoming Chamfer, 0.591 in Thread Length, 2.756 in Overall Length, Right Hand Cutting Direction, Class of Fit: 2BX, 0.194 in Shank Diameter, 1.77 in Shank Length, 0.1752 in Tap Drill, 0.152 in Square, HSS-E, TiN-T1 Coated

DIN/ANSI Standard|ASME B1.1|DIN 2174|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
