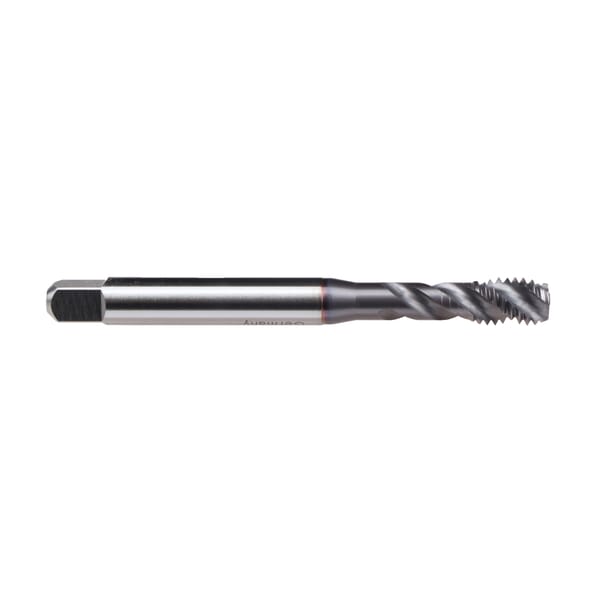

Emuge BU519400.5044 Enorm 1-Z/E BU519400 Form E Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 5/16-24 Thread, Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiCN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge BU519400.5044 Enorm 1-Z/E BU519400 Form E Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 5/16-24 Thread, Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826501166

MFG #BU519400.5044

Emuge Spiral Flute Tap, Form E Fast Reinforced Shank, Series: Enorm 1-Z/E BU519400, Measurement System: Imperial, UNF, 5/16-24, Bottoming Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting, 0.787 in Thread Length, 3.543 in Overall Length, 0.318 in Shank Dia, 2.283 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys Material Application, No Through Coolant (Yes/No)

$78.54

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.543 in

Series: Enorm 1-Z/E BU519400

Shank Diameter: 0.318 in

Shank Length: 2.283 in

Thread Length: 0.787 in

Thread Size: 5/16-24

Thread Standard: UNF

Through Coolant (Yes/No): No

Type: Form E Fast Reinforced Shank

The fast spiral flute (45 deg) provides good chip removal from blind holes
Z designates a tool design for CNC controlled machines with synchronous feed control
TiCN coated for abrasion resistance and additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Flute Tap, Form E Fast Reinforced Shank, Series: Enorm 1-Z/E BU519400, Measurement System: Imperial, UNF, 5/16-24, Bottoming Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting, 0.787 in Thread Length, 3.543 in Overall Length, 0.318 in Shank Dia, 2.283 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys Material Application, No Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.543 in

Series: Enorm 1-Z/E BU519400

Shank Diameter: 0.318 in

Shank Length: 2.283 in

Thread Length: 0.787 in

Thread Size: 5/16-24

Thread Standard: UNF

Through Coolant (Yes/No): No

Type: Form E Fast Reinforced Shank

The fast spiral flute (45 deg) provides good chip removal from blind holes
Z designates a tool design for CNC controlled machines with synchronous feed control
TiCN coated for abrasion resistance and additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Flute Tap, Form E Fast Reinforced Shank, Series: Enorm 1-Z/E BU519400, Measurement System: Imperial, UNF, 5/16-24, Bottoming Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting, 0.787 in Thread Length, 3.543 in Overall Length, 0.318 in Shank Dia, 2.283 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys Material Application, No Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
