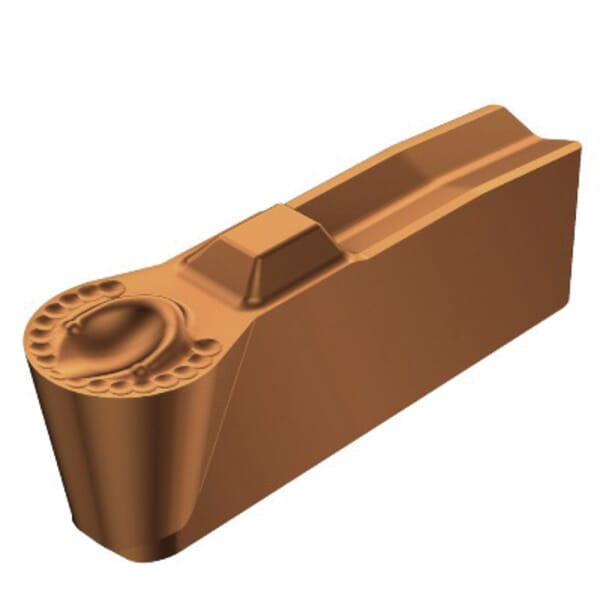

Sandvik Coromant 5738014 T-Max Q-Cut Profiling Insert, ANSI Code: N151.3-300-25-7P 1125, N151.3-7P Insert, 25 Insert, Material Grade: K, M, N, P, S, 0.0511 in Max Depth of Cut, Manufacturers Grade: 1125

Product Line: Sandvik Coromant

MFG #: 5738014

Sandvik Coromant 5738014 T-Max Q-Cut Profiling Insert, ANSI Code: N151.3-300-25-7P 1125, N151.3-7P Insert, 25 Insert, Material Grade: K, M, N, P, S, 0.0511 in Max Depth of Cut, Manufacturers Grade: 1125
Sandvik Coromant 5738014 T-Max Q-Cut Profiling Insert, ANSI Code: N151.3-300-25-7P 1125, N151.3-7P Insert, 25 Insert, Material Grade: K, M, N, P, S, 0.0511 in Max Depth of Cut, Manufacturers Grade: 1125
Sandvik Coromant 5738014 T-Max Q-Cut Profiling Insert, ANSI Code: N151.3-300-25-7P 1125, N151.3-7P Insert, 25 Insert, Material Grade: K, M, N, P, S, 0.0511 in Max Depth of Cut, Manufacturers Grade: 1125
Sandvik Coromant 5738014 T-Max Q-Cut Profiling Insert, ANSI Code: N151.3-300-25-7P 1125, N151.3-7P Insert, 25 Insert, Material Grade: K, M, N, P, S, 0.0511 in Max Depth of Cut, Manufacturers Grade: 1125

Your Price

$19.95 / EA
Pack10/PK

Details

Part#826299218

Manufacturer:Sandvik Coromant

MFG #5738014

Sandvik Coromant Profiling Insert, Series: T-Max Q-Cut, N151.3-7P Insert, 25 Insert, 0.0511 in Maximum Depth of Cut, 0.2081 in Thickness, 0.2334 in Length, 7P Chipbreaker, ANSI Code: N151.3-300-25-7P 1125, 0.059 in Corner Radius, Manufacturers Grade: 1125, Positive Rake, 9 deg Relief Angle, Ambidextrous Hand, Carbide, PVD-TiAlN Coated, Material Grade: K, M, N, P, S

Specifications

ANSI Code
N151.3-300-25-7P 1125
Chipbreaker
7P
Corner Radius
0.059 in
Country of Origin
US
Finish
PVD-TiAlN Coated
Hand of Insert
Ambidextrous
Insert Size
25
Insert Style
N151.3-7P
Length
0.2334 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
1125
Material
Carbide
Material Grade
K, M, N, P, S
Maximum Depth of Cut
0.0511 in
Rake
Positive
Relief Angle
9 deg
Series
T-Max Q-Cut
Thickness
0.2081 in

Application

Medium Feed Operation

Item Features

  • Excellent surface finish due to wiper technology
  • Proven, versatile system
  • Large variety of widths
  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability

Documents

826299218

Sandvik Coromant 5738014 T-Max Q-Cut Profiling Insert, ANSI Code: N151.3-300-25-7P 1125, N151.3-7P Insert, 25 Insert, Material Grade: K, M, N, P, S, 0.0511 in Max Depth of Cut, Manufacturers Grade: 1125

Description


Sandvik Coromant Profiling Insert, Series: T-Max Q-Cut, N151.3-7P Insert, 25 Insert, 0.0511 in Maximum Depth of Cut, 0.2081 in Thickness, 0.2334 in Length, 7P Chipbreaker, ANSI Code: N151.3-300-25-7P 1125, 0.059 in Corner Radius, Manufacturers Grade: 1125, Positive Rake, 9 deg Relief Angle, Ambidextrous Hand, Carbide, PVD-TiAlN Coated, Material Grade: K, M, N, P, S

Product Number: 826299218

Manufacturer: Sandvik Coromant

Prasdsadice:

$19.95 / EA
Pack10/PK

MFG #: 5738014

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: N151.3-300-25-7P 1125

Chipbreaker: 7P

Corner Radius: 0.059 in

Country of Origin: US

Finish: PVD-TiAlN Coated

Hand of Insert: Ambidextrous

Insert Size: 25

Insert Style: N151.3-7P

Length: 0.2334 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1125

Material: Carbide

Material Grade: K, M, N, P, S

Maximum Depth of Cut: 0.0511 in

Rake: Positive

Relief Angle: 9 deg

Series: T-Max Q-Cut

Thickness: 0.2081 in

Item Features

  • Excellent surface finish due to wiper technology
  • Proven, versatile system
  • Large variety of widths
  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
