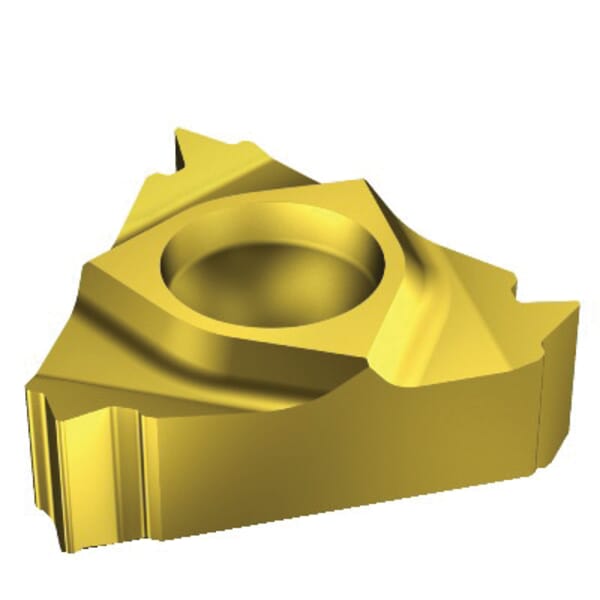

Sandvik Coromant 5742070 T-Max U-Lock Threading Insert, ANSI Code: R166.0L-11UN01-240 1020, R166.0L Insert, Triangular Shape, 24 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1020, Material Grade: H, K, M, N, P, S

Product Line: Sandvik Coromant

MFG #: 5742070

Sandvik Coromant 5742070 T-Max U-Lock Threading Insert, ANSI Code: R166.0L-11UN01-240 1020, R166.0L Insert, Triangular Shape, 24 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1020, Material Grade: H, K, M, N, P, S
Sandvik Coromant 5742070 T-Max U-Lock Threading Insert, ANSI Code: R166.0L-11UN01-240 1020, R166.0L Insert, Triangular Shape, 24 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1020, Material Grade: H, K, M, N, P, S
Sandvik Coromant 5742070 T-Max U-Lock Threading Insert, ANSI Code: R166.0L-11UN01-240 1020, R166.0L Insert, Triangular Shape, 24 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1020, Material Grade: H, K, M, N, P, S
Sandvik Coromant 5742070 T-Max U-Lock Threading Insert, ANSI Code: R166.0L-11UN01-240 1020, R166.0L Insert, Triangular Shape, 24 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1020, Material Grade: H, K, M, N, P, S
Sandvik Coromant 5742070 T-Max U-Lock Threading Insert, ANSI Code: R166.0L-11UN01-240 1020, R166.0L Insert, Triangular Shape, 24 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1020, Material Grade: H, K, M, N, P, S

Your Price

$33.16 / EA
Pack10/PK

Details

Part#826299153

Manufacturer:Sandvik Coromant

MFG #5742070

Sandvik Coromant Threading Insert, Series: T-Max U-Lock, R166.0L Insert, 11 Insert, Triangular, Internal, UN, 24, 1/4 in Inscribed Circle, 1/8 in Thickness, ANSI Code: R166.0L-11UN01-240 1020, ISO Code: R166.0L-11UN01-240 1020, A Chipbreaker, 60 deg Included Angle, Manufacturers Grade: 1020, Right Hand Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, M, N, P, S

Specifications

ANSI Code
R166.0L-11UN01-240 1020
Chipbreaker
A
Country of Origin
SE
Cutting Direction
Right Hand
Finish
PVD-TiN Coated
Included Angle
60 deg
Inscribed Circle
1/4 in
Insert Size
11
Insert Style
R166.0L
ISO Code
R166.0L-11UN01-240 1020
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
1020
Material
Carbide
Material Grade
H, K, M, N, P, S
Series
T-Max U-Lock
Shape
Triangular
Thickness
1/8 in
Thread Standard
UN
Thread Type
Internal
Threads per Inch
24

Application

For thread turning

Standards

ISO 5864-1978

Documents

826299153

Sandvik Coromant 5742070 T-Max U-Lock Threading Insert, ANSI Code: R166.0L-11UN01-240 1020, R166.0L Insert, Triangular Shape, 24 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1020, Material Grade: H, K, M, N, P, S

Description


Sandvik Coromant Threading Insert, Series: T-Max U-Lock, R166.0L Insert, 11 Insert, Triangular, Internal, UN, 24, 1/4 in Inscribed Circle, 1/8 in Thickness, ANSI Code: R166.0L-11UN01-240 1020, ISO Code: R166.0L-11UN01-240 1020, A Chipbreaker, 60 deg Included Angle, Manufacturers Grade: 1020, Right Hand Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, M, N, P, S

Product Number: 826299153

Manufacturer: Sandvik Coromant

Prasdsadice:

$33.16 / EA
Pack10/PK

MFG #: 5742070

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R166.0L-11UN01-240 1020

Chipbreaker: A

Country of Origin: SE

Cutting Direction: Right Hand

Finish: PVD-TiN Coated

Included Angle: 60 deg

Inscribed Circle: 1/4 in

Insert Size: 11

Insert Style: R166.0L

ISO Code: R166.0L-11UN01-240 1020

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1020

Material: Carbide

Material Grade: H, K, M, N, P, S

Series: T-Max U-Lock

Shape: Triangular

Thickness: 1/8 in

Thread Standard: UN

Thread Type: Internal

Threads per Inch: 24

Standards

ISO 5864-1978
