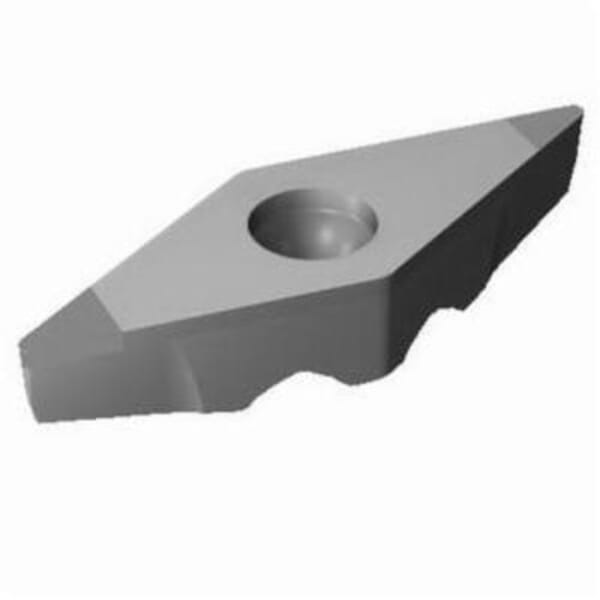

Sandvik Coromant 5983711 CoroTurn TR 1-Sided Basic Shape Turning Insert, ANSI Code: TR-VB1304S01020F 7025, TR-VB Insert, Material Grade: H, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Manufacturer: Sandvik Coromant
MFG #: 5983711
Sandvik Coromant 5983711 CoroTurn TR 1-Sided Basic Shape Turning Insert, ANSI Code: TR-VB1304S01020F 7025, TR-VB Insert, Material Grade: H, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Sandvik Coromant 5983711 CoroTurn TR 1-Sided Basic Shape Turning Insert, ANSI Code: TR-VB1304S01020F 7025, TR-VB Insert, Material Grade: H, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Sandvik Coromant 5983711 CoroTurn TR 1-Sided Basic Shape Turning Insert, ANSI Code: TR-VB1304S01020F 7025, TR-VB Insert, Material Grade: H, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Sandvik Coromant 5983711 CoroTurn TR 1-Sided Basic Shape Turning Insert, ANSI Code: TR-VB1304S01020F 7025, TR-VB Insert, Material Grade: H, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide

Your Price

$103.66 / EA
Pack1/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5983711 CoroTurn TR 1-Sided Basic Shape Turning Insert, ANSI Code: TR-VB1304S01020F 7025, TR-VB Insert, Material Grade: H, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Manufacturer: Sandvik Coromant
MFG #: 5983711

Your Price

$103.66 / EA
Pack1/PK

Details

Part#826283711

Manufacturer:Sandvik Coromant

MFG #5983711

Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn TR, TR-VB Insert, 1304 Insert, Rhombic, 0.008 in Maximum Depth of Cut, 0.3149 in Inscribed Circle, 0.1781 in Thickness, 0.5118 in Length, 13 Seat, Positive Rake, 0.0156 in Corner Radius, 0.1338 in Hole Dia, Manufacturer's Grade: 7025, ANSI Code: TR-VB1304S01020F 7025, ISO Code: TR-VB1304S01020F 7025, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: H, For Use On: Hardened Steel

Specifications

ANSI Code
TR-VB1304S01020F 7025
Corner Radius
0.0156 in
Cutting Direction
Neutral
Finish
Uncoated
For Use On
Hardened Steel
Hole Diameter
0.1338 in
ISO Code
TR-VB1304S01020F 7025
Included Angle
35 deg
Inscribed Circle
0.3149 in
Insert Size
1304
Insert Style
TR-VB
Length
0.5118 in
Manufacturer's Grade
7025
Material
Carbide
Material Grade
H
Maximum Depth of Cut
0.008 in
Rake
Positive
Relief Angle
7 deg
Seat Size
13
Series
CoroTurn TR, CoroTurn® TR
Shape
Rhombic
Thickness
0.1781 in
Type
1-Sided Basic Shape
826283711

Sandvik Coromant 5983711 CoroTurn TR 1-Sided Basic Shape Turning Insert, ANSI Code: TR-VB1304S01020F 7025, TR-VB Insert, Material Grade: H, 1304 Insert, Rhombic Shape, 13 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide

Description


Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn TR, TR-VB Insert, 1304 Insert, Rhombic, 0.008 in Maximum Depth of Cut, 0.3149 in Inscribed Circle, 0.1781 in Thickness, 0.5118 in Length, 13 Seat, Positive Rake, 0.0156 in Corner Radius, 0.1338 in Hole Dia, Manufacturer's Grade: 7025, ANSI Code: TR-VB1304S01020F 7025, ISO Code: TR-VB1304S01020F 7025, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: H, For Use On: Hardened Steel

Product Number: 826283711

Manufacturer: Sandvik Coromant

Price:

$103.66 / EA
Pack1/PK

MFG #: 5983711

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: TR-VB1304S01020F 7025

Corner Radius: 0.0156 in

Cutting Direction: Neutral

Finish: Uncoated

For Use On: Hardened Steel

Hole Diameter: 0.1338 in

ISO Code: TR-VB1304S01020F 7025

Included Angle: 35 deg

Inscribed Circle: 0.3149 in

Insert Size: 1304

Insert Style: TR-VB

Length: 0.5118 in

Manufacturer's Grade: 7025

Material: Carbide

Material Grade: H

Maximum Depth of Cut: 0.008 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 13

Series: CoroTurn TR, CoroTurn® TR

Shape: Rhombic

Thickness: 0.1781 in

Type: 1-Sided Basic Shape
