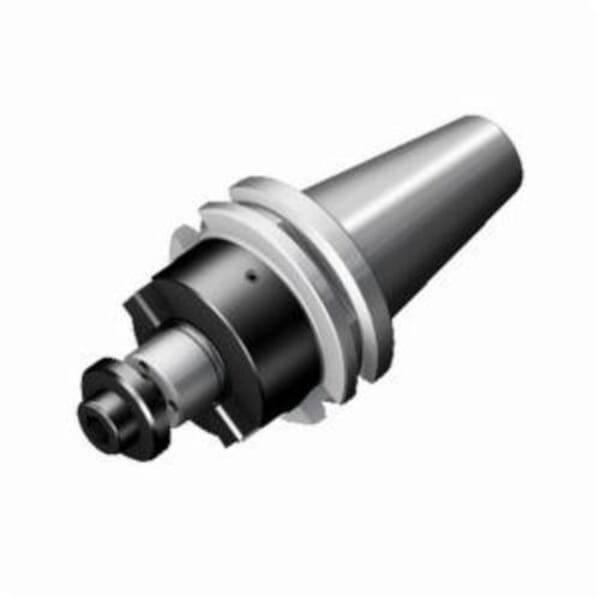

Sandvik Coromant 6078789 Adapter, 0.6299 in Dia Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Dia Nose, 1.7716 in Projection
Manufacturer: Sandvik Coromant
MFG #: 6078789
Sandvik Coromant 6078789 Adapter, 0.6299 in Dia Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Dia Nose, 1.7716 in Projection
Sandvik Coromant 6078789 Adapter, 0.6299 in Dia Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Dia Nose, 1.7716 in Projection
Sandvik Coromant 6078789 Adapter, 0.6299 in Dia Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Dia Nose, 1.7716 in Projection
Sandvik Coromant 6078789 Adapter, 0.6299 in Dia Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Dia Nose, 1.7716 in Projection

Your Price

$447.30 / EA
Pack1/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 6078789 Adapter, 0.6299 in Dia Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Dia Nose, 1.7716 in Projection
Manufacturer: Sandvik Coromant
MFG #: 6078789

Your Price

$447.30 / EA
Pack1/PK

Details

Part#826278789

Manufacturer:Sandvik Coromant

MFG #6078789

Sandvik Coromant Adapter, 0.6299 in Diameter Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Diameter Nose, 1.7716 in Projection, 4.4645 in Overall Length, 2-1/2 in Overall Diameter, 0.6299 in Shank Connection, ANSI Code: 392.54005C4016045, ISO Code: 392.54005C4016045

Specifications

ANSI Code
392.54005C4016045
Hole Diameter
0.6299 in
ISO Code
392.54005C4016045
Nose Diameter
1.4173 in
Overall Diameter
2-1/2 in
Overall Length
4.4645 in
Projection
1.7716 in
Shank Connection Size
0.6299 in
Shank Type
BIG-PLUS ISO x Arbor
Taper Size
ISO 40

Item Features

  • Balanced design
  • 20 life cycle state
  • Steel body
  • Decentral over flange and axial coolant entry
  • 80 bar coolant
  • Axial concentric coolant exit on circle
  • 11 mm L shank
  • 45 mm overhang
  • 22 Nm torque
  • 392.54005C (2) tool style

Item Includes

5758336 Key, 5758346 Driving Ring, 5758487 Screw, 5763361 Washer and 5764002 Dowel Set

Documents

826278789

Sandvik Coromant 6078789 Adapter, 0.6299 in Dia Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Dia Nose, 1.7716 in Projection

Description


Sandvik Coromant Adapter, 0.6299 in Diameter Hole, BIG-PLUS ISO x Arbor Shank, ISO 40 Taper, 1.4173 in Diameter Nose, 1.7716 in Projection, 4.4645 in Overall Length, 2-1/2 in Overall Diameter, 0.6299 in Shank Connection, ANSI Code: 392.54005C4016045, ISO Code: 392.54005C4016045

Product Number: 826278789

Manufacturer: Sandvik Coromant

Price:

$447.30 / EA
Pack1/PK

MFG #: 6078789

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: 392.54005C4016045

Hole Diameter: 0.6299 in

ISO Code: 392.54005C4016045

Nose Diameter: 1.4173 in

Overall Diameter: 2-1/2 in

Overall Length: 4.4645 in

Projection: 1.7716 in

Shank Connection Size: 0.6299 in

Shank Type: BIG-PLUS ISO x Arbor

Taper Size: ISO 40

Item Includes

5758336 Key, 5758346 Driving Ring, 5758487 Screw, 5763361 Washer and 5764002 Dowel Set
