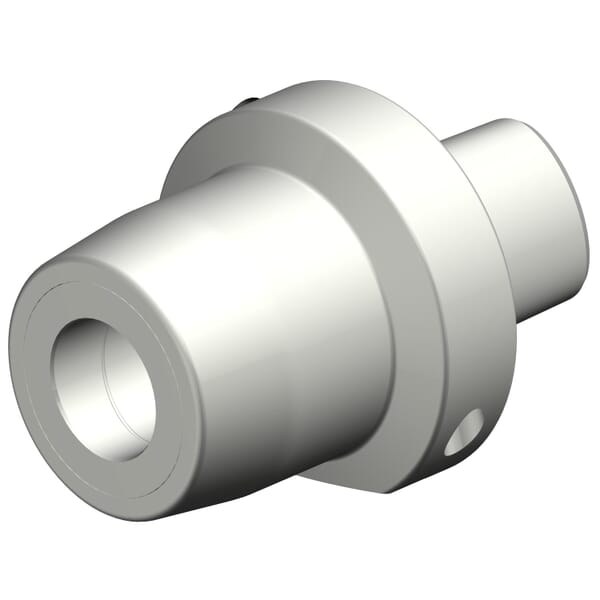

Sandvik Coromant 6976413 CoroChuck 930 High Precision Hydraulic Tool Holder and Chuck, Coromant Capto Shank, C4 Connection, 0.787 in Dia Hole, 1-1/2 in Dia Nose, 2.283 in Projection

ManufacturerSandvik Coromant

Part #826276413

MFG #6976413

Sandvik Coromant Hydraulic Tool Holder and Chuck, High Precision, Series: CoroChuck 930, C4 Connection, Coromant Capto Shank, 1.575 in Taper, 0.787 in Diameter Hole, 1-1/2 in Diameter Nose, 2.283 in Projection, 2.008 in Clamping Depth, System Size Machine Side: C4, ANSI Code: 930-C4-T-20-058, ISO Code: 930-C4-T-20-058, Yes Through Coolant

$921.02

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-C4-T-20-058

Clamping Depth: 2.008 in

Connection Size: C4

Country of Origin: DE

Hole Diameter: 0.787 in

ISO Code: 930-C4-T-20-058

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1-1/2 in

Projection: 2.283 in

Series: CoroChuck 930

Shank Type: Coromant Capto

System Size Machine Side: C4

Taper Size: 1.575 in

Through Coolant (Yes/No): Yes

Type: High Precision

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

5764228 Torque Wrench and 6829081 Clamping Screw

DIN 69888

For stable machining in milling and drilling applications

Video Link

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-C4-T-20-058

Clamping Depth: 2.008 in

Connection Size: C4

Country of Origin: DE

Hole Diameter: 0.787 in

ISO Code: 930-C4-T-20-058

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1-1/2 in

Projection: 2.283 in

Series: CoroChuck 930

Shank Type: Coromant Capto

System Size Machine Side: C4

Taper Size: 1.575 in

Through Coolant (Yes/No): Yes

Type: High Precision

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

5764228 Torque Wrench and 6829081 Clamping Screw

DIN 69888

For stable machining in milling and drilling applications
