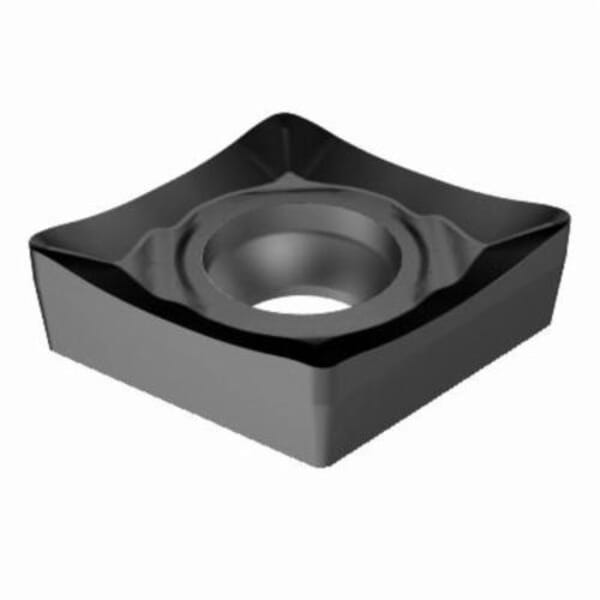

Sandvik Coromant 6075414 CoroTurn 107 Turning Insert, ANSI Code: CCGX 3(2.5)1-AL 1105, CCGX Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105
Manufacturer: Sandvik Coromant
MFG #: 6075414
Sandvik Coromant 6075414 CoroTurn 107 Turning Insert, ANSI Code: CCGX 3(2.5)1-AL 1105, CCGX Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105
Sandvik Coromant 6075414 CoroTurn 107 Turning Insert, ANSI Code: CCGX 3(2.5)1-AL 1105, CCGX Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105
Sandvik Coromant 6075414 CoroTurn 107 Turning Insert, ANSI Code: CCGX 3(2.5)1-AL 1105, CCGX Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105
Sandvik Coromant 6075414 CoroTurn 107 Turning Insert, ANSI Code: CCGX 3(2.5)1-AL 1105, CCGX Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105
Sandvik Coromant 6075414 CoroTurn 107 Turning Insert, ANSI Code: CCGX 3(2.5)1-AL 1105, CCGX Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105

Your Price

$20.15 / EA
Pack10/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 6075414 CoroTurn 107 Turning Insert, ANSI Code: CCGX 3(2.5)1-AL 1105, CCGX Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105
Manufacturer: Sandvik Coromant
MFG #: 6075414

Your Price

$20.15 / EA
Pack10/PK

Details

Part#826275414

Manufacturer:Sandvik Coromant

MFG #6075414

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCGX Insert, 3(2.5)1 Insert, Diamond, 5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, AL Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: CCGX 3(2.5)1-AL 1105, ISO Code: CCGX 09 T3 04-AL 1105, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: M, S, For Use On: Stainless Steel and Heat Resistant Super Alloys and Titanium

Specifications

ANSI Code
CCGX 3(2.5)1-AL 1105
Chipbreaker
AL
Corner Radius
0.0156 in
Cutting Direction
Neutral
Finish
PVD-TiAlN2 Coated
For Use On
Stainless Steel and Heat Resistant Super Alloys and Titanium
Hole Diameter
0.1732 in
ISO Code
CCGX 09 T3 04-AL 1105
Included Angle
80 deg
Inscribed Circle
3/8 in
Insert Size
3(2.5)1
Insert Style
CCGX
Manufacturer's Grade
1105
Material
Carbide
Material Grade
M, S
Maximum Depth of Cut
5 mm
Rake
Positive
Relief Angle
7 deg
Seat Size
09
Series
CoroTurn 107, CoroTurn® 107
Shape
Diamond
Thickness
0.1562 in

Item Features

  • When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
  • Wiper geometries available for high feeds and high quality surface finish

Documents

826275414

Sandvik Coromant 6075414 CoroTurn 107 Turning Insert, ANSI Code: CCGX 3(2.5)1-AL 1105, CCGX Insert, Material Grade: M, S, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: 1105

Description


Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCGX Insert, 3(2.5)1 Insert, Diamond, 5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, AL Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: CCGX 3(2.5)1-AL 1105, ISO Code: CCGX 09 T3 04-AL 1105, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: M, S, For Use On: Stainless Steel and Heat Resistant Super Alloys and Titanium

Product Number: 826275414

Manufacturer: Sandvik Coromant

Price:

$20.15 / EA
Pack10/PK

MFG #: 6075414

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: CCGX 3(2.5)1-AL 1105

Chipbreaker: AL

Corner Radius: 0.0156 in

Cutting Direction: Neutral

Finish: PVD-TiAlN2 Coated

For Use On: Stainless Steel and Heat Resistant Super Alloys and Titanium

Hole Diameter: 0.1732 in

ISO Code: CCGX 09 T3 04-AL 1105

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)1

Insert Style: CCGX

Manufacturer's Grade: 1105

Material: Carbide

Material Grade: M, S

Maximum Depth of Cut: 5 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107, CoroTurn® 107

Shape: Diamond

Thickness: 0.1562 in

Item Features

  • When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
  • Wiper geometries available for high feeds and high quality surface finish
