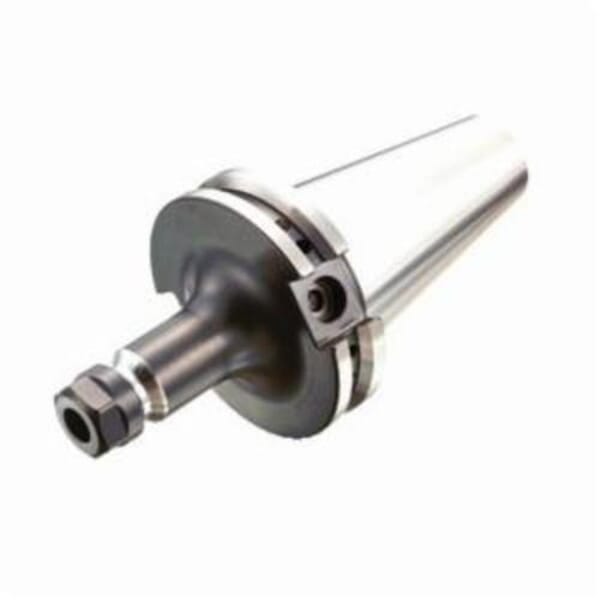

Sandvik Coromant 6074003 Collet Chuck, Tapered Shank, ER11 Collet System, 11 mm Chuck
Manufacturer: Sandvik Coromant
MFG #: 6074003
Sandvik Coromant 6074003 Collet Chuck, Tapered Shank, ER11 Collet System, 11 mm Chuck
Sandvik Coromant 6074003 Collet Chuck, Tapered Shank, ER11 Collet System, 11 mm Chuck
Sandvik Coromant 6074003 Collet Chuck, Tapered Shank, ER11 Collet System, 11 mm Chuck
Sandvik Coromant 6074003 Collet Chuck, Tapered Shank, ER11 Collet System, 11 mm Chuck
Sandvik Coromant 6074003 Collet Chuck, Tapered Shank, ER11 Collet System, 11 mm Chuck

Your Price

$181.05 / EA
Pack: 1/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 6074003 Collet Chuck, Tapered Shank, ER11 Collet System, 11 mm Chuck
Manufacturer: Sandvik Coromant
MFG #: 6074003

Your Price

$181.05 / EA
Pack: 1/PK

Details

Part#826274003

Manufacturer:Sandvik Coromant

MFG #6074003

Sandvik Coromant Collet Chuck, 138.4 mm Overall Length, 19 mm Nose Dia, 70 mm Head Length/Projection, ER11 Collet System, Tapered Shank, 11 mm Chuck, CAT-V40 Taper, 19 mm Collet Nut Dia, ANSI Code: AA3B14-40 11 070, ISO Code: AA3B14-40 11 070, Yes Through Coolant (Yes/No)

Specifications

ANSI Code
AA3B14-40 11 070
Chuck Size
11 mm
Collet Nut Diameter
19 mm
Collet System
ER11
Head Length/Projection
70 mm
ISO Code
AA3B14-40 11 070
Nose Diameter
19 mm
Overall Length
138.4 mm
Shank Type
Tapered
Taper Size
CAT-V40
Through Coolant (Yes/No)
Yes

Item Features

  • CAT-V -AD/B central/flange coolant - CAT-V40 machine side adaptive interface
  • 70 mm L body
  • 18000 r/min
  • AA3B14 (7) tool style
  • 20 life cycle state
  • ER collet (DIN6499-B) -ER11 workpiece side adaptive interface
  • 63.55 mm Dia body
  • 45 deg body half taper
  • Steel body
  • Decentral over flange and axial coolant entry
  • 80 bar coolant
  • Axial concentric coolant exit
  • 11.4 mm Dia connection

Item Includes

5763412 Locking Nut

Documents

Catalog
826274003

Sandvik Coromant 6074003 Collet Chuck, Tapered Shank, ER11 Collet System, 11 mm Chuck

Description


Sandvik Coromant Collet Chuck, 138.4 mm Overall Length, 19 mm Nose Dia, 70 mm Head Length/Projection, ER11 Collet System, Tapered Shank, 11 mm Chuck, CAT-V40 Taper, 19 mm Collet Nut Dia, ANSI Code: AA3B14-40 11 070, ISO Code: AA3B14-40 11 070, Yes Through Coolant (Yes/No)

Product Number: 826274003

Manufacturer: Sandvik Coromant

Price:

$181.05 / EA
Pack: 1/PK

MFG #: 6074003

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: AA3B14-40 11 070

Chuck Size: 11 mm

Collet Nut Diameter: 19 mm

Collet System: ER11

Head Length/Projection: 70 mm

ISO Code: AA3B14-40 11 070

Nose Diameter: 19 mm

Overall Length: 138.4 mm

Shank Type: Tapered

Taper Size: CAT-V40

Through Coolant (Yes/No): Yes

Item Includes

5763412 Locking Nut
