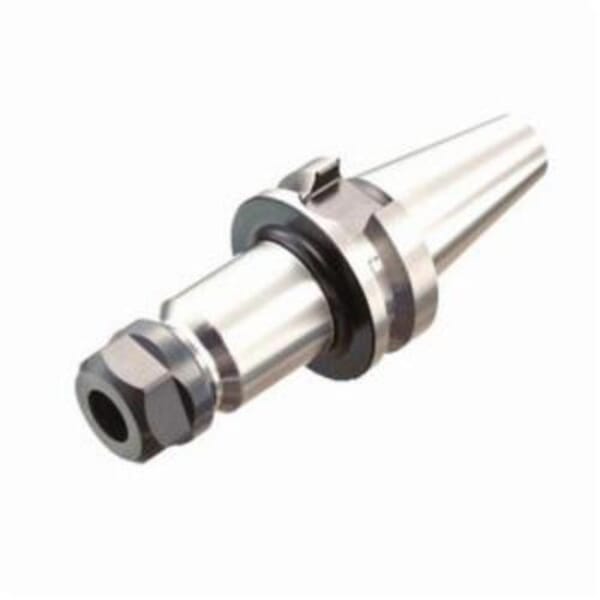

Sandvik Coromant 6073980 Collet Chuck, Tapered Shank, ER25 Collet System, 25 mm Chuck
Manufacturer: Sandvik Coromant
MFG #: 6073980
Sandvik Coromant 6073980 Collet Chuck, Tapered Shank, ER25 Collet System, 25 mm Chuck
Sandvik Coromant 6073980 Collet Chuck, Tapered Shank, ER25 Collet System, 25 mm Chuck
Sandvik Coromant 6073980 Collet Chuck, Tapered Shank, ER25 Collet System, 25 mm Chuck
Sandvik Coromant 6073980 Collet Chuck, Tapered Shank, ER25 Collet System, 25 mm Chuck
Sandvik Coromant 6073980 Collet Chuck, Tapered Shank, ER25 Collet System, 25 mm Chuck

Your Price

$177.50 / EA
Pack: 1/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 6073980 Collet Chuck, Tapered Shank, ER25 Collet System, 25 mm Chuck
Manufacturer: Sandvik Coromant
MFG #: 6073980

Your Price

$177.50 / EA
Pack: 1/PK

Details

Part#826273980

Manufacturer:Sandvik Coromant

MFG #6073980

Sandvik Coromant Collet Chuck, 148.4 mm Overall Length, 42 mm Nose Dia, 100 mm Head Length/Projection, ER25 Collet System, Tapered Shank, 25 mm Chuck, BT30 Taper, 42 mm Collet Nut Dia, ANSI Code: A214-30 25 100, ISO Code: A214-30 25 100, Yes Through Coolant (Yes/No)

Specifications

ANSI Code
A214-30 25 100
Chuck Size
25, 25 mm
Collet Nut Diameter
42 mm
Collet System
ER25
Head Length/Projection
100 mm
ISO Code
A214-30 25 100
Nose Diameter
42 mm
Overall Length
148.4 mm
Shank Type
Tapered
Taper Size
BT30
Through Coolant (Yes/No)
Yes

Item Features

  • MAS -BT403 -AD central coolant - BT30 machine side adaptive interface
  • 100 mm L body
  • 25000 r/min
  • A214 (2) tool style
  • 20 life cycle state
  • ER collet (DIN6499-B) -ER25 workpiece side adaptive interface
  • 46 mm Dia body
  • 0 deg body half taper
  • Steel body
  • Axial concentric coolant entry
  • 80 bar coolant
  • Axial concentric coolant exit
  • 26 mm Dia connection

Item Includes

5763403 Locking Nut and 5764163 Wrench

Documents

Catalog
826273980

Sandvik Coromant 6073980 Collet Chuck, Tapered Shank, ER25 Collet System, 25 mm Chuck

Description


Sandvik Coromant Collet Chuck, 148.4 mm Overall Length, 42 mm Nose Dia, 100 mm Head Length/Projection, ER25 Collet System, Tapered Shank, 25 mm Chuck, BT30 Taper, 42 mm Collet Nut Dia, ANSI Code: A214-30 25 100, ISO Code: A214-30 25 100, Yes Through Coolant (Yes/No)

Product Number: 826273980

Manufacturer: Sandvik Coromant

Price:

$177.50 / EA
Pack: 1/PK

MFG #: 6073980

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: A214-30 25 100

Chuck Size: 25, 25 mm

Collet Nut Diameter: 42 mm

Collet System: ER25

Head Length/Projection: 100 mm

ISO Code: A214-30 25 100

Nose Diameter: 42 mm

Overall Length: 148.4 mm

Shank Type: Tapered

Taper Size: BT30

Through Coolant (Yes/No): Yes

Item Includes

5763403 Locking Nut and 5764163 Wrench
