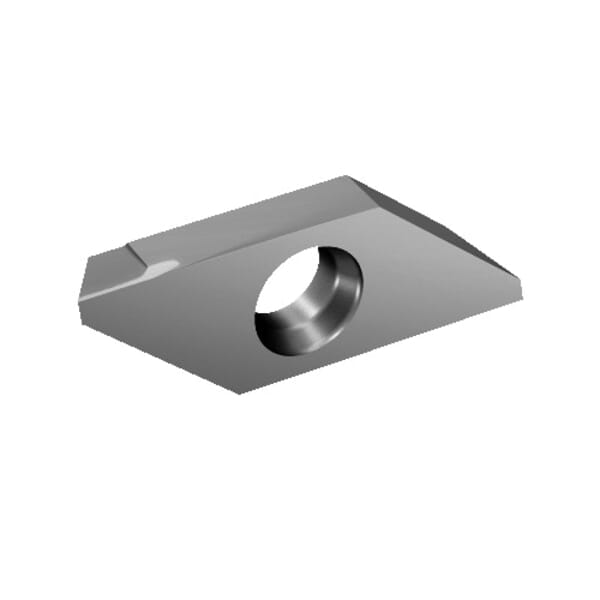

Sandvik Coromant 6071743 CoroCut XS 2-Sided Turning Insert, ANSI Code: MAFL 3 020 1105, MAFL Insert, Material Grade: M, S, 3020 Insert, Parallelogram Shape, 3 Seat, Positive Rake, Left Hand Cutting, Carbide, Manufacturers Grade: 1105

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6071743 CoroCut XS 2-Sided Turning Insert, ANSI Code: MAFL 3 020 1105, MAFL Insert, Material Grade: M, S, 3020 Insert, Parallelogram Shape, 3 Seat, Positive Rake, Left Hand Cutting, Carbide, Manufacturers Grade: 1105

ManufacturerSandvik Coromant

Part #826271743

MFG #6071743

Sandvik Coromant Turning Insert, 2-Sided, Series: CoroCut XS, MAFL Insert, 3020 Insert, Parallelogram, 0.157 in Maximum Depth of Cut, 1/8 in Thickness, 3 Seat, Positive Rake, MA Chipbreaker, 0.008 in Corner Radius, Manufacturers Grade: 1105, ANSI Code: MAFL 3 020 1105, ISO Code: MAFL 3 020 1105, 6 deg Relief Angle, Left Hand Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: M, S, For Use On: Heat Resistant Super Alloys and Stainless Steel

$60.97

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: MAFL 3 020 1105

Chipbreaker: MA

Corner Radius: 0.008 in

Country of Origin: JP

Cutting Direction: Left Hand

Finish: PVD-TiAlN2 Coated

For Use On: Heat Resistant Super Alloys and Stainless Steel

Insert Size: 3020

Insert Style: MAFL

ISO Code: MAFL 3 020 1105

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1105

Material: Carbide

Material Grade: M, S

Maximum Depth of Cut: 0.157 in

Rake: Positive

Relief Angle: 6 deg

Seat Size: 3

Series: CoroCut XS

Shape: Parallelogram

Thickness: 1/8 in

Type: 2-Sided

Sharp cutting edges
All inserts fit into the same tool holder
High quality ground inserts and holders
Full profile inserts for high quality threads in one operation
Designed to maintain the tool holder intact in case of insert breakage
High precision, close tolerances and easy indexing
Good accessibility when changing inserts
Wide variety of insert widths
Internal grooving at very small diameters

CoroCut XS is a tangentially mounted system for precision machining in sliding head machines and lathes. The system is for external parting, grooving, turning, back turning, and threading applications. The extremely sharp cutting edges perform best at low feeds.

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: MAFL 3 020 1105

Chipbreaker: MA

Corner Radius: 0.008 in

Country of Origin: JP

Cutting Direction: Left Hand

Finish: PVD-TiAlN2 Coated

For Use On: Heat Resistant Super Alloys and Stainless Steel

Insert Size: 3020

Insert Style: MAFL

ISO Code: MAFL 3 020 1105

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1105

Material: Carbide

Material Grade: M, S

Maximum Depth of Cut: 0.157 in

Rake: Positive

Relief Angle: 6 deg

Seat Size: 3

Series: CoroCut XS

Shape: Parallelogram

Thickness: 1/8 in

Type: 2-Sided

Sharp cutting edges
All inserts fit into the same tool holder
High quality ground inserts and holders
Full profile inserts for high quality threads in one operation
Designed to maintain the tool holder intact in case of insert breakage
High precision, close tolerances and easy indexing
Good accessibility when changing inserts
Wide variety of insert widths
Internal grooving at very small diameters
