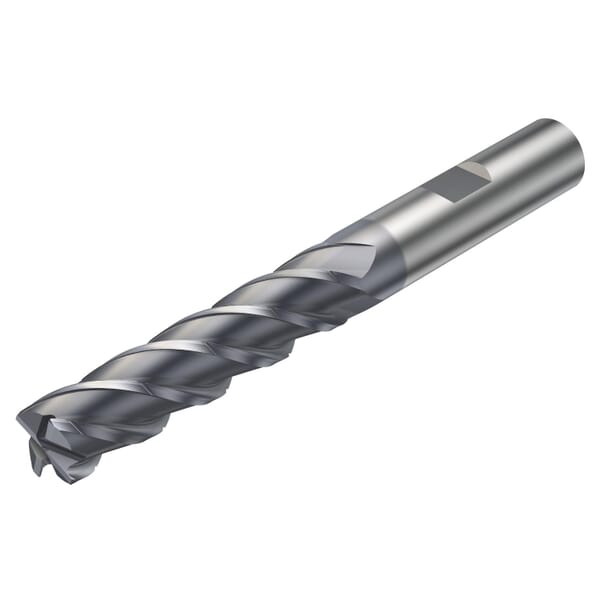

Sandvik Coromant 6870033 CoroMill Plura Square Shoulder End Mill, 5/16 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 2-15/16 in OAL
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Sandvik Coromant 6870033 CoroMill Plura Square Shoulder End Mill, 5/16 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 2-15/16 in OAL
ManufacturerSandvik Coromant
Part #826270033
MFG #6870033
Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 5/16 in Diameter Cutter, 2-15/16 in Overall Length, 1-1/4 in Length of Cut, 4 Flutes, 5/16 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Weldon Flat Shank, ANSI Code: 2P370-0794-PB 1740, ISO Code: 2P370-0794-PB 1740, Solid Carbide
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Sandvik Coromant
ANSI Code:Â 2P370-0794-PB 1740
Country of Origin:Â IT
Cutter Diameter:Â 5/16 in
Cutting Direction:Â Right Hand
Finish:Â PVD Coated
Helix Angle:Â 37 deg
ISO Code:Â 2P370-0794-PB 1740
Length of Cut:Â 1-1/4 in
Manufacturer Name:Â Sandvik Coromant
Material:Â Solid Carbide
Number of Flutes:Â 4
Overall Length:Â 2-15/16 in
Series:Â CoroMill Plura
Shank Diameter:Â 5/16 in
Shank Type:Â Weldon Flat
Type:Â Square
1740 manufacturer grade
1 mm maximum working engagement
0.3 maximum working engagement ratio
Interrupted edge property
Center cutting capability
5.36 mm Dia core at face
0.102 mm W corner chamfer
-0.058 mm cutting diameter tolerance
Without coolant entry
Cutting pitch differential
No coolant exit
7.734 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10 deg radial rake
7.5 deg axial rake
31.75 mm L usable
1 maximum regrinds
38.613 mm overhang
90 deg y-axis rot
DIN1835-B|DIN6535-HB
Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 5/16 in Diameter Cutter, 2-15/16 in Overall Length, 1-1/4 in Length of Cut, 4 Flutes, 5/16 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Weldon Flat Shank, ANSI Code: 2P370-0794-PB 1740, ISO Code: 2P370-0794-PB 1740, Solid Carbide
