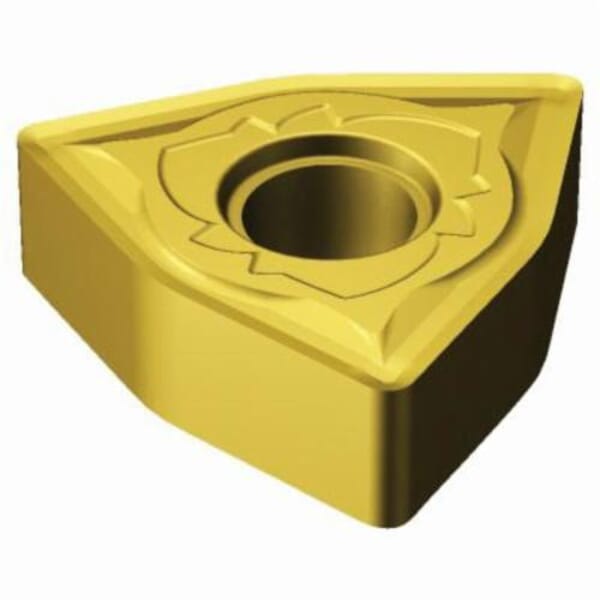

Sandvik Coromant 5966261 T-Max P Turning Insert, ANSI Code: WNMG432-SMR 2025, WNMG Insert, Material Grade: M, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Manufacturer: Sandvik Coromant
MFG #: 5966261
Sandvik Coromant 5966261 T-Max P Turning Insert, ANSI Code: WNMG432-SMR 2025, WNMG Insert, Material Grade: M, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966261 T-Max P Turning Insert, ANSI Code: WNMG432-SMR 2025, WNMG Insert, Material Grade: M, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966261 T-Max P Turning Insert, ANSI Code: WNMG432-SMR 2025, WNMG Insert, Material Grade: M, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966261 T-Max P Turning Insert, ANSI Code: WNMG432-SMR 2025, WNMG Insert, Material Grade: M, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025

Your Price

$13.69 / EA
Pack10/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5966261 T-Max P Turning Insert, ANSI Code: WNMG432-SMR 2025, WNMG Insert, Material Grade: M, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Manufacturer: Sandvik Coromant
MFG #: 5966261

Your Price

$13.69 / EA
Pack10/PK

Details

Part#826266261

Manufacturer:Sandvik Coromant

MFG #5966261

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, SMR Chipbreaker, 0.031 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: WNMG432-SMR 2025, ISO Code: WNMG 08 04 08-SMR 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code
WNMG432-SMR 2025
Chipbreaker
SMR
Corner Radius
0.031 in
Cutting Direction
Neutral
Finish
CVD-TiCN+Al2O3+TiN Coated
For Use On
Stainless Steel
Hole Diameter
0.2029 in
ISO Code
WNMG 08 04 08-SMR 2025
Included Angle
80 deg
Inscribed Circle
1/2 in
Insert Size
432
Insert Style
WNMG
Manufacturer's Grade
2025
Material
Carbide
Material Grade
M
Maximum Depth of Cut
4 mm
Rake
Negative
Relief Angle
0 deg
Seat Size
08
Series
T-Max P, T-Max® P
Shape
Trigon
Thickness
0.187 in

Item Features

  • Excellent surface finish
  • Reliable and secure machining, even in roughing applications
  • Possibility to optimize by using damped Silent Tools

Documents

826266261

Sandvik Coromant 5966261 T-Max P Turning Insert, ANSI Code: WNMG432-SMR 2025, WNMG Insert, Material Grade: M, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025

Description


Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, SMR Chipbreaker, 0.031 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: WNMG432-SMR 2025, ISO Code: WNMG 08 04 08-SMR 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Product Number: 826266261

Manufacturer: Sandvik Coromant

Price:

$13.69 / EA
Pack10/PK

MFG #: 5966261

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: WNMG432-SMR 2025

Chipbreaker: SMR

Corner Radius: 0.031 in

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Stainless Steel

Hole Diameter: 0.2029 in

ISO Code: WNMG 08 04 08-SMR 2025

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: WNMG

Manufacturer's Grade: 2025

Material: Carbide

Material Grade: M

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 08

Series: T-Max P, T-Max® P

Shape: Trigon

Thickness: 0.187 in

Item Features

  • Excellent surface finish
  • Reliable and secure machining, even in roughing applications
  • Possibility to optimize by using damped Silent Tools
