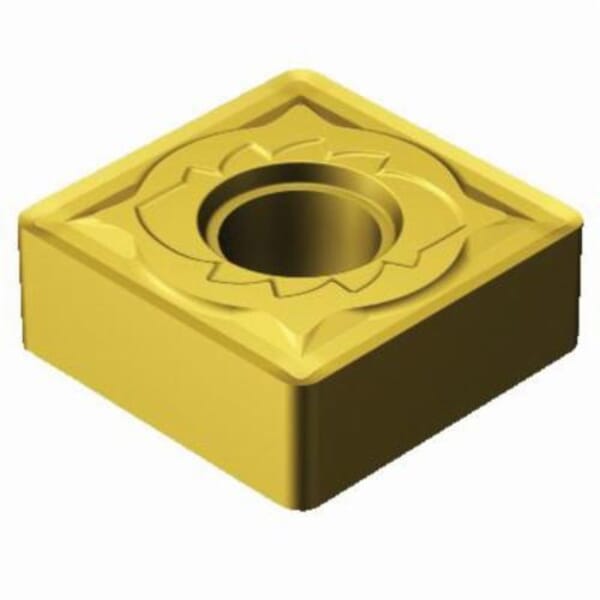

Sandvik Coromant 5966255 T-Max P Turning Insert, ANSI Code: SNMG644-SMR 2025, SNMG Insert, Material Grade: M, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Manufacturer: Sandvik Coromant
MFG #: 5966255
Sandvik Coromant 5966255 T-Max P Turning Insert, ANSI Code: SNMG644-SMR 2025, SNMG Insert, Material Grade: M, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966255 T-Max P Turning Insert, ANSI Code: SNMG644-SMR 2025, SNMG Insert, Material Grade: M, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966255 T-Max P Turning Insert, ANSI Code: SNMG644-SMR 2025, SNMG Insert, Material Grade: M, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966255 T-Max P Turning Insert, ANSI Code: SNMG644-SMR 2025, SNMG Insert, Material Grade: M, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025

Your Price

$27.43 / EA
Pack10/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5966255 T-Max P Turning Insert, ANSI Code: SNMG644-SMR 2025, SNMG Insert, Material Grade: M, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Manufacturer: Sandvik Coromant
MFG #: 5966255

Your Price

$27.43 / EA
Pack10/PK

Details

Part#826266255

Manufacturer:Sandvik Coromant

MFG #5966255

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 644 Insert, Squared, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Width, 3/4 in Length, 19 Seat, Negative Rake, SMR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG644-SMR 2025, ISO Code: SNMG190616-SMR 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code
SNMG644-SMR 2025
Chipbreaker
SMR
Corner Radius
0.0624 in
Cutting Direction
Neutral
Finish
CVD-TiCN+Al2O3+TiN Coated
For Use On
Stainless Steel
Hole Diameter
0.312 in
ISO Code
SNMG190616-SMR 2025
Included Angle
90 deg
Inscribed Circle
3/4 in
Insert Size
644
Insert Style
SNMG
Length
3/4, 3/4 in
Manufacturer's Grade
2025
Material
Carbide
Material Grade
M
Maximum Depth of Cut
10 mm
Rake
Negative
Relief Angle
0 deg
Seat Size
19
Series
T-Max P, T-Max® P
Shape
Squared
Thickness
1/4, 1/4 in
Width
3/4, 3/4 in

Item Features

  • Excellent surface finish
  • Reliable and secure machining, even in roughing applications
  • Possibility to optimize by using damped Silent Tools

Documents

826266255

Sandvik Coromant 5966255 T-Max P Turning Insert, ANSI Code: SNMG644-SMR 2025, SNMG Insert, Material Grade: M, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025

Description


Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 644 Insert, Squared, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Width, 3/4 in Length, 19 Seat, Negative Rake, SMR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG644-SMR 2025, ISO Code: SNMG190616-SMR 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Product Number: 826266255

Manufacturer: Sandvik Coromant

Price:

$27.43 / EA
Pack10/PK

MFG #: 5966255

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: SNMG644-SMR 2025

Chipbreaker: SMR

Corner Radius: 0.0624 in

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Stainless Steel

Hole Diameter: 0.312 in

ISO Code: SNMG190616-SMR 2025

Included Angle: 90 deg

Inscribed Circle: 3/4 in

Insert Size: 644

Insert Style: SNMG

Length: 3/4, 3/4 in

Manufacturer's Grade: 2025

Material: Carbide

Material Grade: M

Maximum Depth of Cut: 10 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Series: T-Max P, T-Max® P

Shape: Squared

Thickness: 1/4, 1/4 in

Width: 3/4, 3/4 in

Item Features

  • Excellent surface finish
  • Reliable and secure machining, even in roughing applications
  • Possibility to optimize by using damped Silent Tools
