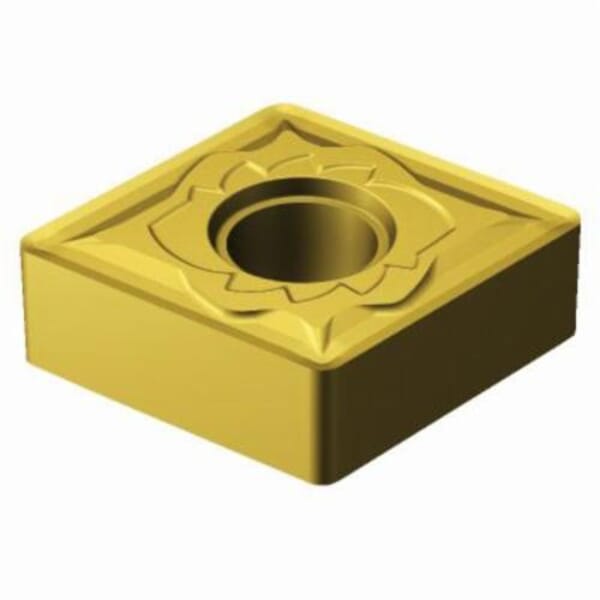

Sandvik Coromant 5966252 T-Max P Turning Insert, ANSI Code: CNMG544-SMR 2025, CNMG Insert, Material Grade: M, 544 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Manufacturer: Sandvik Coromant
MFG #: 5966252
Sandvik Coromant 5966252 T-Max P Turning Insert, ANSI Code: CNMG544-SMR 2025, CNMG Insert, Material Grade: M, 544 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966252 T-Max P Turning Insert, ANSI Code: CNMG544-SMR 2025, CNMG Insert, Material Grade: M, 544 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966252 T-Max P Turning Insert, ANSI Code: CNMG544-SMR 2025, CNMG Insert, Material Grade: M, 544 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966252 T-Max P Turning Insert, ANSI Code: CNMG544-SMR 2025, CNMG Insert, Material Grade: M, 544 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Sandvik Coromant 5966252 T-Max P Turning Insert, ANSI Code: CNMG544-SMR 2025, CNMG Insert, Material Grade: M, 544 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025

Your Price

$19.63 / EA
Pack10/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5966252 T-Max P Turning Insert, ANSI Code: CNMG544-SMR 2025, CNMG Insert, Material Grade: M, 544 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025
Manufacturer: Sandvik Coromant
MFG #: 5966252

Your Price

$19.63 / EA
Pack10/PK

Details

Part#826266252

Manufacturer:Sandvik Coromant

MFG #5966252

Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 544 Insert, Rhombic, 0.236 in Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 16 Seat, Negative Rake, SMR Chipbreaker, 0.062 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: CNMG544-SMR 2025, ISO Code: CNMG160616-SMR 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code
CNMG544-SMR 2025
Chipbreaker
SMR
Corner Radius
0.062 in
Cutting Direction
Neutral
Finish
CVD-TiCN+Al2O3+TiN Coated
For Use On
Stainless Steel
Hole Diameter
1/4, 1/4 in
ISO Code
CNMG160616-SMR 2025
Included Angle
80 deg
Inscribed Circle
5/8 in
Insert Size
544
Insert Style
CNMG
Manufacturer's Grade
2025
Material
Carbide
Material Grade
M
Maximum Depth of Cut
0.236 in
Rake
Negative
Relief Angle
0 deg
Seat Size
16
Series
T-Max P, T-Max® P
Shape
Rhombic
Thickness
1/4, 1/4 in

Documents

826266252

Sandvik Coromant 5966252 T-Max P Turning Insert, ANSI Code: CNMG544-SMR 2025, CNMG Insert, Material Grade: M, 544 Insert, Rhombic Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: 2025

Description


Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 544 Insert, Rhombic, 0.236 in Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 16 Seat, Negative Rake, SMR Chipbreaker, 0.062 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: CNMG544-SMR 2025, ISO Code: CNMG160616-SMR 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Product Number: 826266252

Manufacturer: Sandvik Coromant

Price:

$19.63 / EA
Pack10/PK

MFG #: 5966252

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: CNMG544-SMR 2025

Chipbreaker: SMR

Corner Radius: 0.062 in

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Stainless Steel

Hole Diameter: 1/4, 1/4 in

ISO Code: CNMG160616-SMR 2025

Included Angle: 80 deg

Inscribed Circle: 5/8 in

Insert Size: 544

Insert Style: CNMG

Manufacturer's Grade: 2025

Material: Carbide

Material Grade: M

Maximum Depth of Cut: 0.236 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 16

Series: T-Max P, T-Max® P

Shape: Rhombic

Thickness: 1/4, 1/4 in
