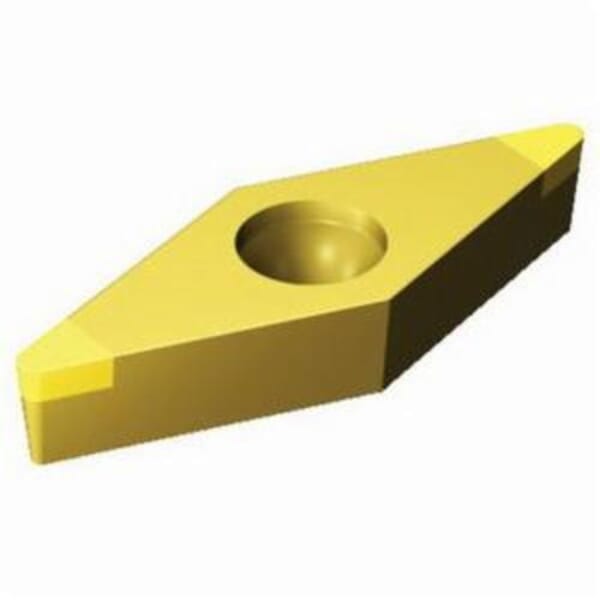

Sandvik Coromant 5965435 CoroTurn 107 1-Sided Turning Insert, ANSI Code: VBGW331T0320F 7525, VBGW Insert, Material Grade: H, K, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Hardened Materials, Carbide
Manufacturer: Sandvik Coromant
MFG #: 5965435
Sandvik Coromant 5965435 CoroTurn 107 1-Sided Turning Insert, ANSI Code: VBGW331T0320F 7525, VBGW Insert, Material Grade: H, K, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Hardened Materials, Carbide
Sandvik Coromant 5965435 CoroTurn 107 1-Sided Turning Insert, ANSI Code: VBGW331T0320F 7525, VBGW Insert, Material Grade: H, K, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Hardened Materials, Carbide
Sandvik Coromant 5965435 CoroTurn 107 1-Sided Turning Insert, ANSI Code: VBGW331T0320F 7525, VBGW Insert, Material Grade: H, K, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Hardened Materials, Carbide
Sandvik Coromant 5965435 CoroTurn 107 1-Sided Turning Insert, ANSI Code: VBGW331T0320F 7525, VBGW Insert, Material Grade: H, K, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Hardened Materials, Carbide

Your Price

$104.73 / EA
Pack1/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5965435 CoroTurn 107 1-Sided Turning Insert, ANSI Code: VBGW331T0320F 7525, VBGW Insert, Material Grade: H, K, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Hardened Materials, Carbide
Manufacturer: Sandvik Coromant
MFG #: 5965435

Your Price

$104.73 / EA
Pack1/PK

Details

Part#826265435

Manufacturer:Sandvik Coromant

MFG #5965435

Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn 107, VBGW Insert, 331 Insert, Rhombic, 0.032 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6537 in Length, 16 Seat, Positive Rake, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 7525, ANSI Code: VBGW331T0320F 7525, ISO Code: VBGW160404T01020F 7525, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, For Use On: Cast Iron and Hardened Materials

Specifications

ANSI Code
VBGW331T0320F 7525
Corner Radius
0.0156 in
Cutting Direction
Neutral
Finish
PVD-TiN Coated
For Use On
Cast Iron and Hardened Materials
Hole Diameter
0.1732 in
ISO Code
VBGW160404T01020F 7525
Included Angle
35 deg
Inscribed Circle
3/8 in
Insert Size
331
Insert Style
VBGW
Length
0.6537 in
Manufacturer's Grade
7525
Material
Carbide
Material Grade
H, K
Maximum Depth of Cut
0.032 in
Rake
Positive
Relief Angle
7 deg
Seat Size
16
Series
CoroTurn 107, CoroTurn® 107
Shape
Rhombic
Thickness
0.1874 in
Type
1-Sided

Item Features

  • Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Wiper geometries available for high feeds and high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish

Documents

826265435

Sandvik Coromant 5965435 CoroTurn 107 1-Sided Turning Insert, ANSI Code: VBGW331T0320F 7525, VBGW Insert, Material Grade: H, K, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Hardened Materials, Carbide

Description


Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn 107, VBGW Insert, 331 Insert, Rhombic, 0.032 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6537 in Length, 16 Seat, Positive Rake, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 7525, ANSI Code: VBGW331T0320F 7525, ISO Code: VBGW160404T01020F 7525, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, For Use On: Cast Iron and Hardened Materials

Product Number: 826265435

Manufacturer: Sandvik Coromant

Price:

$104.73 / EA
Pack1/PK

MFG #: 5965435

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: VBGW331T0320F 7525

Corner Radius: 0.0156 in

Cutting Direction: Neutral

Finish: PVD-TiN Coated

For Use On: Cast Iron and Hardened Materials

Hole Diameter: 0.1732 in

ISO Code: VBGW160404T01020F 7525

Included Angle: 35 deg

Inscribed Circle: 3/8 in

Insert Size: 331

Insert Style: VBGW

Length: 0.6537 in

Manufacturer's Grade: 7525

Material: Carbide

Material Grade: H, K

Maximum Depth of Cut: 0.032 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 16

Series: CoroTurn 107, CoroTurn® 107

Shape: Rhombic

Thickness: 0.1874 in

Type: 1-Sided

Item Features

  • Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Wiper geometries available for high feeds and high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
