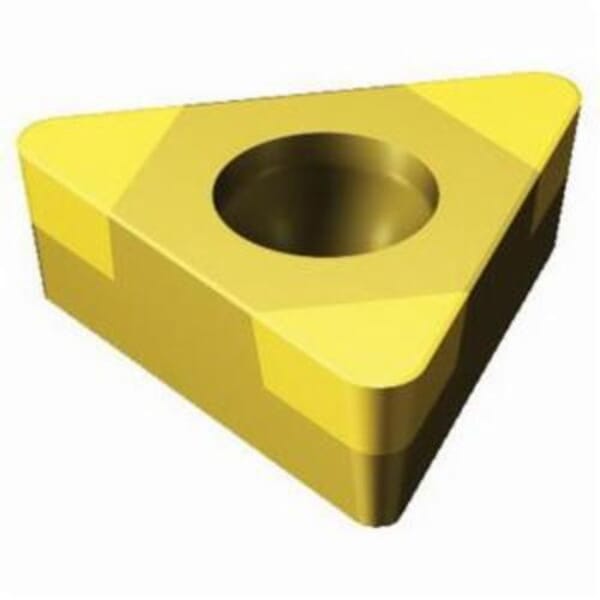

Sandvik Coromant 5965431 CoroTurn 107 Turning Insert, ANSI Code: TCGW1.8(1.5)1S0630F 7525, TCGW Insert, Material Grade: H, 1.8(1.5)1 Insert, Triangular Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Manufacturer: Sandvik Coromant
MFG #: 5965431
Sandvik Coromant 5965431 CoroTurn 107 Turning Insert, ANSI Code: TCGW1.8(1.5)1S0630F 7525, TCGW Insert, Material Grade: H, 1.8(1.5)1 Insert, Triangular Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Sandvik Coromant 5965431 CoroTurn 107 Turning Insert, ANSI Code: TCGW1.8(1.5)1S0630F 7525, TCGW Insert, Material Grade: H, 1.8(1.5)1 Insert, Triangular Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Sandvik Coromant 5965431 CoroTurn 107 Turning Insert, ANSI Code: TCGW1.8(1.5)1S0630F 7525, TCGW Insert, Material Grade: H, 1.8(1.5)1 Insert, Triangular Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Sandvik Coromant 5965431 CoroTurn 107 Turning Insert, ANSI Code: TCGW1.8(1.5)1S0630F 7525, TCGW Insert, Material Grade: H, 1.8(1.5)1 Insert, Triangular Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide

Your Price

$123.07 / EA
Pack1/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5965431 CoroTurn 107 Turning Insert, ANSI Code: TCGW1.8(1.5)1S0630F 7525, TCGW Insert, Material Grade: H, 1.8(1.5)1 Insert, Triangular Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide
Manufacturer: Sandvik Coromant
MFG #: 5965431

Your Price

$123.07 / EA
Pack1/PK

Details

Part#826265431

Manufacturer:Sandvik Coromant

MFG #5965431

Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCGW Insert, 1.8(1.5)1 Insert, Triangular, 0.4 mm Maximum Depth of Cut, 0.225 in Inscribed Circle, 0.094 in Thickness, 09 Seat, Positive Rake, 0.016 in Corner Radius, 0.0984 in Hole Dia, Manufacturer's Grade: 7525, ANSI Code: TCGW1.8(1.5)1S0630F 7525, ISO Code: TCGW090204S01530F 7525, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, For Use On: Hardened Steel

Specifications

ANSI Code
TCGW1.8(1.5)1S0630F 7525
Corner Radius
0.016 in
Cutting Direction
Neutral
Finish
PVD-TiN Coated
For Use On
Hardened Steel
Hole Diameter
0.0984 in
ISO Code
TCGW090204S01530F 7525
Included Angle
60 deg
Inscribed Circle
0.225 in
Insert Size
1.8(1.5)1
Insert Style
TCGW
Manufacturer's Grade
7525
Material
Carbide
Material Grade
H
Maximum Depth of Cut
0.4 mm
Rake
Positive
Relief Angle
7 deg
Seat Size
09
Series
CoroTurn 107, CoroTurn® 107
Shape
Triangular
Thickness
0.094 in

Item Features

  • When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
  • Wiper geometries available for high feeds and high quality surface finish
826265431

Sandvik Coromant 5965431 CoroTurn 107 Turning Insert, ANSI Code: TCGW1.8(1.5)1S0630F 7525, TCGW Insert, Material Grade: H, 1.8(1.5)1 Insert, Triangular Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, Carbide

Description


Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCGW Insert, 1.8(1.5)1 Insert, Triangular, 0.4 mm Maximum Depth of Cut, 0.225 in Inscribed Circle, 0.094 in Thickness, 09 Seat, Positive Rake, 0.016 in Corner Radius, 0.0984 in Hole Dia, Manufacturer's Grade: 7525, ANSI Code: TCGW1.8(1.5)1S0630F 7525, ISO Code: TCGW090204S01530F 7525, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, For Use On: Hardened Steel

Product Number: 826265431

Manufacturer: Sandvik Coromant

Price:

$123.07 / EA
Pack1/PK

MFG #: 5965431

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: TCGW1.8(1.5)1S0630F 7525

Corner Radius: 0.016 in

Cutting Direction: Neutral

Finish: PVD-TiN Coated

For Use On: Hardened Steel

Hole Diameter: 0.0984 in

ISO Code: TCGW090204S01530F 7525

Included Angle: 60 deg

Inscribed Circle: 0.225 in

Insert Size: 1.8(1.5)1

Insert Style: TCGW

Manufacturer's Grade: 7525

Material: Carbide

Material Grade: H

Maximum Depth of Cut: 0.4 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107, CoroTurn® 107

Shape: Triangular

Thickness: 0.094 in

Item Features

  • When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
  • Wiper geometries available for high feeds and high quality surface finish
