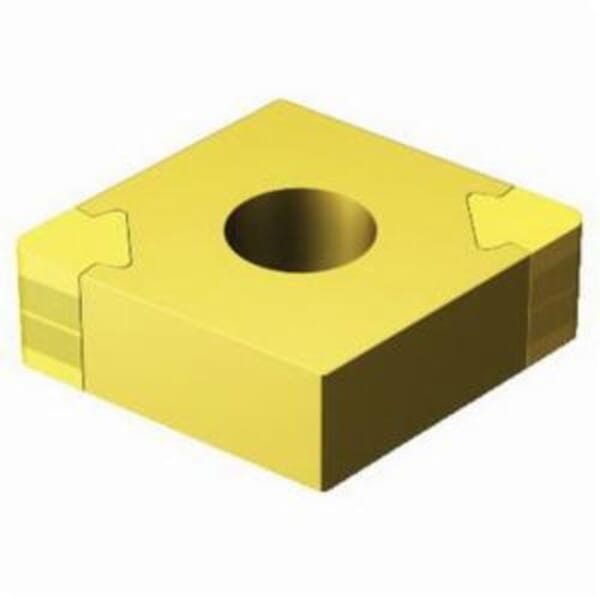

Sandvik Coromant 5965420 T-Max P Turning Insert, ANSI Code: CNGA432S0630B 7525, CNGA Insert, Material Grade: H, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steel, Carbide, Manufacturer's Grade: 7525
Your Price
Sandvik Coromant 5965420 T-Max P Turning Insert, ANSI Code: CNGA432S0630B 7525, CNGA Insert, Material Grade: H, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steel, Carbide, Manufacturer's Grade: 7525
Your Price
Sandvik Coromant 5965420 T-Max P Turning Insert, ANSI Code: CNGA432S0630B 7525, CNGA Insert, Material Grade: H, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steel, Carbide, Manufacturer's Grade: 7525
Description
Sandvik Coromant Turning Insert, Series: T-Max P, CNGA Insert, 432 Insert, Diamond, 0.15 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 12 Seat, Negative Rake, KM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 7525, ANSI Code: CNGA432S0630B 7525, ISO Code: CNGA120408S01530B 7525, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, For Use On: Hardened Steel
Product Number: 826265420
Manufacturer: Sandvik Coromant
Price:
MFG #: 5965420
Manufacturer: Sandvik Coromant
Specifications
ANSI Code: CNGA432S0630B 7525
Chipbreaker: KM
Corner Radius: 0.0312 in
Cutting Direction: Neutral
Finish: PVD-TiN Coated
For Use On: Hardened Steel
Hole Diameter: 0.2029 in
ISO Code: CNGA120408S01530B 7525
Included Angle: 80 deg
Inscribed Circle: 1/2 in
Insert Size: 432
Insert Style: CNGA
Manufacturer's Grade: 7525
Material: Carbide
Material Grade: H
Maximum Depth of Cut: 0.15 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 12
Series: T-Max P, T-Max® P
Shape: Diamond
Thickness: 0.1874 in
Item Features
- Excellent surface finish
- Tools featuring high precision coolant for excellent chip breaking
- Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling
- Reliable and secure machining, even in roughing applications
- Possibility to optimize using damped Silent Tools™
- Negative basic shape inserts for high-performance turning
- Double sided inserts with strong edges
- Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility
- Precision nozzles and optimized geometries for high precision coolant machining
- Dedicated grades and geometries for all applications and materials
- Productive solution with wiper and Xcel technologies
