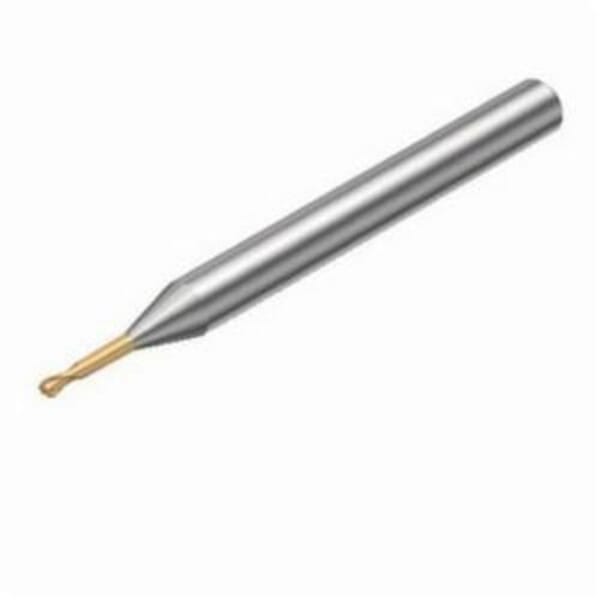

Sandvik Coromant 5963261 CoroMill Plura Ball Nose End Mill, 0.011 in Dia Cutter, 0.009 in Length of Cut, 2 Flutes, 0.157 in Dia Shank, 1.771 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5963261 CoroMill Plura Ball Nose End Mill, 0.011 in Dia Cutter, 0.009 in Length of Cut, 2 Flutes, 0.157 in Dia Shank, 1.771 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826263261

MFG #5963261

Sandvik Coromant End Mill, Ball Nose, Series: CoroMill Plura, 0.011 in Diameter Cutter, 1.771 in Overall Length, 0.009 in Length of Cut, 2 Flutes, 0.157 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-00330-EC03G 1700, ISO Code: R216.42-00330-EC03G 1700, Solid Carbide, PVD Coated

$227.80

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.42-00330-EC03G 1700

Country of Origin: JP

Cutter Diameter: 0.011 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.42-00330-EC03G 1700

Length of Cut: 0.009 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.771 in

Series: CoroMill Plura

Shank Diameter: 0.157 in

Shank Type: Cylindrical

Type: Ball Nose

1700 manufacturer grade
0.27 mm Dia body
0 deg body half taper
Straight chip breaker
0.45 mm L body
1 cutting length
Without coolant entry
No coolant exit
0.27 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
-6 deg radial rake
1.5 deg axial rake
0.45 mm L usable
17 mm overhang
0 deg lead
0.15 mm corner radius
15 deg ramping
80000 r/min
20 life cycle state

Pre-Machining and Finishing

DIN1835-A|DIN6535-HA

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.42-00330-EC03G 1700

Country of Origin: JP

Cutter Diameter: 0.011 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.42-00330-EC03G 1700

Length of Cut: 0.009 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.771 in

Series: CoroMill Plura

Shank Diameter: 0.157 in

Shank Type: Cylindrical

Type: Ball Nose

1700 manufacturer grade
0.27 mm Dia body
0 deg body half taper
Straight chip breaker
0.45 mm L body
1 cutting length
Without coolant entry
No coolant exit
0.27 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
-6 deg radial rake
1.5 deg axial rake
0.45 mm L usable
17 mm overhang
0 deg lead
0.15 mm corner radius
15 deg ramping
80000 r/min
20 life cycle state

Pre-Machining and Finishing

DIN1835-A|DIN6535-HA

Catalog

SDS
