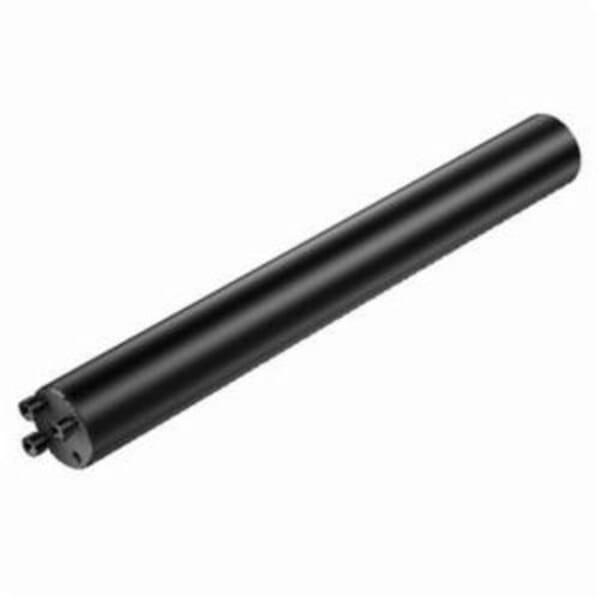

Name: Sandvik Coromant 5962714 Dampened Boring Bar Adapter, 1-1/2 in Dia Shank, Shank Connection, 1-1/2 in Body Dia Workpiece Side, ISO Code: A570-4C D24 13-32
Brand: Sandvik Coromant
SKU: UNISDK022443
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5962714 Dampened Boring Bar Adapter, 1-1/2 in Dia Shank, Shank Connection, 1-1/2 in Body Dia Workpiece Side, ISO Code: A570-4C D24 13-32

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5962714 Dampened Boring Bar Adapter, 1-1/2 in Dia Shank, Shank Connection, 1-1/2 in Body Dia Workpiece Side, ISO Code: A570-4C D24 13-32

ManufacturerSandvik Coromant

Part #826262714

MFG #5962714

Sandvik Coromant Boring Bar Adapter, in Shank Length 13.15, in Shank Diameter 6.22, in Shank Diameter Workpiece Side 1-1/2, in Body Diameter Workpiece Side 1.26, in Usable Length 1-1/2, in ISO Code 6.22

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: A570-4C D24 13-32

Body Diameter Workpiece Side: 1-1/2 in

Connection Type: Cylindrical Shank x CoroTurn SL, Shank

Country of Origin: NO

Gage Length: 6.22 in

ISO Code: A570-4C D24 13-32

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 13.15 in

Shank Diameter: 1-1/2 in

Shank Diameter Workpiece Side: 1.26 in

Type: Dampened

Usable Length: 6.22 in

The ingenious Serration Lock (SL) interface is extremely robust and lets you create a wide range of tool combinations from a small inventory of adapters and cutting heads
The high precision nozzles on the cutting heads put coolant exactly where you need it, for good chip breaking and long tool life
Tool wear is mainly on the exchangeable cutting head, extending the life of the adapter

5758323 Key, 5758578 Screw and 5759198 O-ring

CoroTurn SL is a universal modular system of adapters with exchangeable cutting heads where you can build customized tools for a variety of machining applications.

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: A570-4C D24 13-32

Body Diameter Workpiece Side: 1-1/2 in

Connection Type: Cylindrical Shank x CoroTurn SL, Shank

Country of Origin: NO

Gage Length: 6.22 in

ISO Code: A570-4C D24 13-32

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 13.15 in

Shank Diameter: 1-1/2 in

Shank Diameter Workpiece Side: 1.26 in

Type: Dampened

Usable Length: 6.22 in

The ingenious Serration Lock (SL) interface is extremely robust and lets you create a wide range of tool combinations from a small inventory of adapters and cutting heads
The high precision nozzles on the cutting heads put coolant exactly where you need it, for good chip breaking and long tool life
Tool wear is mainly on the exchangeable cutting head, extending the life of the adapter

5758323 Key, 5758578 Screw and 5759198 O-ring

CoroTurn SL is a universal modular system of adapters with exchangeable cutting heads where you can build customized tools for a variety of machining applications.
