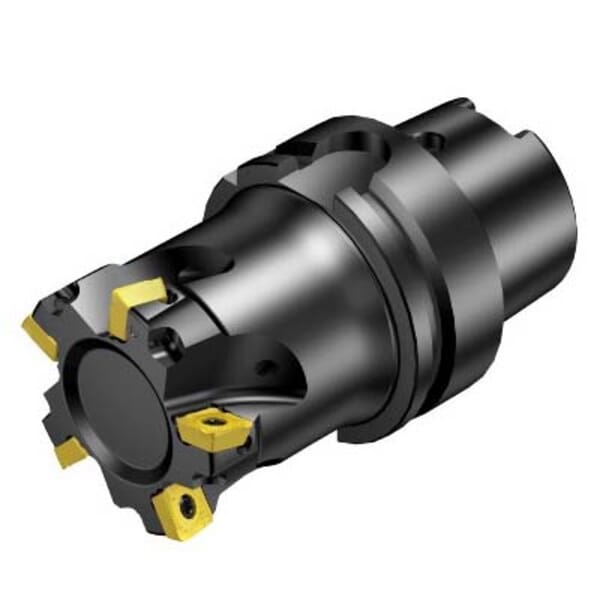

Name: Sandvik Coromant 5761910 CoroMill 490 Shoulder Milling Cutter, ANSI Code: 490-080HA06-08M, 3.1496 in Dia Cutting, HSK Taper Shank, 490..HAxx Insert, Right Hand Cutting, 90 deg Lead Angle, 0.2165 in Max Depth of Cut
Brand: Sandvik Coromant
SKU: UNISDK025317
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5761910 CoroMill 490 Shoulder Milling Cutter, ANSI Code: 490-080HA06-08M, 3.1496 in Dia Cutting, HSK Taper Shank, 490..HAxx Insert, Right Hand Cutting, 90 deg Lead Angle, 0.2165 in Max Depth of Cut

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5761910 CoroMill 490 Shoulder Milling Cutter, ANSI Code: 490-080HA06-08M, 3.1496 in Dia Cutting, HSK Taper Shank, 490..HAxx Insert, Right Hand Cutting, 90 deg Lead Angle, 0.2165 in Max Depth of Cut

ManufacturerSandvik Coromant

Part #826261910

MFG #5761910

Sandvik Coromant Shoulder Milling Cutter, Series: CoroMill 490, 3.1496 in Cutting Dia, 4.0157 in Overall Length, 0.2165 in Maximum Depth of Cut, 490..HAxx Insert, 8 Inserts, Insert Compatibility: 490R-08T308, 2.4803 in Shank Dia, HSK Taper Shank, Right Hand Cutting, ANSI Code: 490-080HA06-08M, ISO Code: 490-080HA06-08M, 90 deg Lead Angle, Yes, Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: 490-080HA06-08M
Country of Origin: SE
Cutting Diameter: 3.1496 in
Cutting Direction: Right Hand
Insert Compatibility: 490R-08T308
Insert Style: 490..HAxx
ISO Code: 490-080HA06-08M
Lead Angle: 90 deg
Manufacturer Name: Sandvik Coromant
Material: Steel
Maximum Depth of Cut: 0.2165 in
Number of Inserts: 8
Overall Length: 4.0157 in
Series: CoroMill 490
Shank Diameter: 2.4803 in
Shank Type: HSK, HSK Taper
Through Coolant (Yes/No): Yes
: 5763151 Screw and 5764128 Key
: 5763151 Screw and 5764128 Key
: CoroMill 490 is a light-cutting, positive concept with four cutting edges. Precise cutter bodies and insert location along with a low-vibration machining process provide accurate shoulders without mismatch. Covers roughing to finishing. It gives you the same cutting edge as CoroMill 390 but offers twice the number of cutting edges. The result: highly efficient shoulder milling.
: Catalog

: Manufacturer Name: Sandvik Coromant
ANSI Code: 490-080HA06-08M
Country of Origin: SE
Cutting Diameter: 3.1496 in
Cutting Direction: Right Hand
Insert Compatibility: 490R-08T308
Insert Style: 490..HAxx
ISO Code: 490-080HA06-08M
Lead Angle: 90 deg
Manufacturer Name: Sandvik Coromant
Material: Steel
Maximum Depth of Cut: 0.2165 in
Number of Inserts: 8
Overall Length: 4.0157 in
Series: CoroMill 490
Shank Diameter: 2.4803 in
Shank Type: HSK, HSK Taper
Through Coolant (Yes/No): Yes
: 5763151 Screw and 5764128 Key
: 5763151 Screw and 5764128 Key
: CoroMill 490 is a light-cutting, positive concept with four cutting edges. Precise cutter bodies and insert location along with a low-vibration machining process provide accurate shoulders without mismatch. Covers roughing to finishing. It gives you the same cutting edge as CoroMill 390 but offers twice the number of cutting edges. The result: highly efficient shoulder milling.
: Catalog
