Sandvik Coromant 6260165 CoroMill Plura Square Shoulder End Mill, 0.393 in Dia Cutter, 0.866 in Length of Cut, 4 Flutes, 0.393 in Dia Shank, 2.834 in OAL
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Sandvik Coromant 6260165 CoroMill Plura Square Shoulder End Mill, 0.393 in Dia Cutter, 0.866 in Length of Cut, 4 Flutes, 0.393 in Dia Shank, 2.834 in OAL
ManufacturerSandvik Coromant
Part #826260165
MFG #6260165

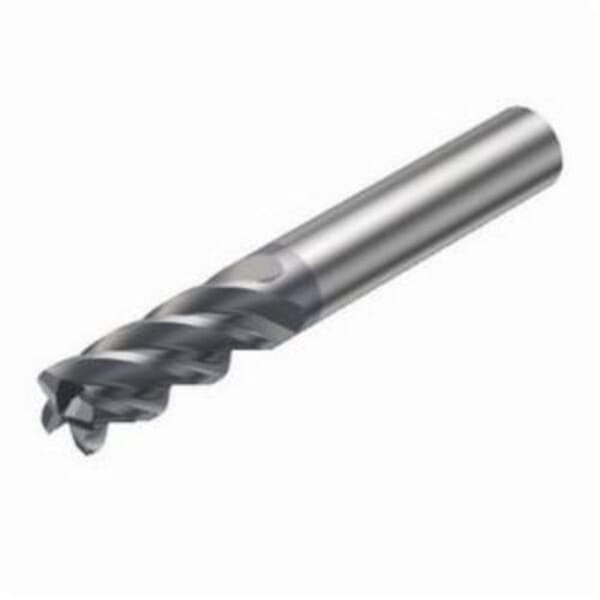

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.393 in Diameter Cutter, 2.834 in Overall Length, 0.866 in Length of Cut, 4 Flutes, 0.393 in Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Cylindrical Shank, ANSI Code: 2S340-1000-050-MA 1640, ISO Code: 2S340-1000-050-MA 1640, Solid Carbide
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Sandvik Coromant
ANSI Code:Â 2S340-1000-050-MA 1640
Country of Origin:Â IT
Cutter Diameter:Â 0.393 in
Cutting Direction:Â Right Hand
Finish:Â PVD Coated
Helix Angle:Â 41 deg
ISO Code:Â 2S340-1000-050-MA 1640
Length of Cut:Â 0.866 in
Manufacturer Name:Â Sandvik Coromant
Material:Â Solid Carbide
Number of Flutes:Â 4
Overall Length:Â 2.834 in
Series:Â CoroMill Plura
Shank Diameter:Â 0.393 in
Shank Type:Â Cylindrical
Type:Â Square
1640 manufacturer grade
1.5 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
6.5 mm Dia core at face
4 cutting length
Without coolant entry
No coolant exit
9 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
15 deg radial rake
13.5 deg axial rake
22 mm L usable
2 maximum regrinds
32 mm overhang
0.5 mm corner radius
90 deg y-axis rot
5 deg ramping
72600 r/min
DIN1835-A|DIN6535-HA
Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.393 in Diameter Cutter, 2.834 in Overall Length, 0.866 in Length of Cut, 4 Flutes, 0.393 in Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Cylindrical Shank, ANSI Code: 2S340-1000-050-MA 1640, ISO Code: 2S340-1000-050-MA 1640, Solid Carbide
