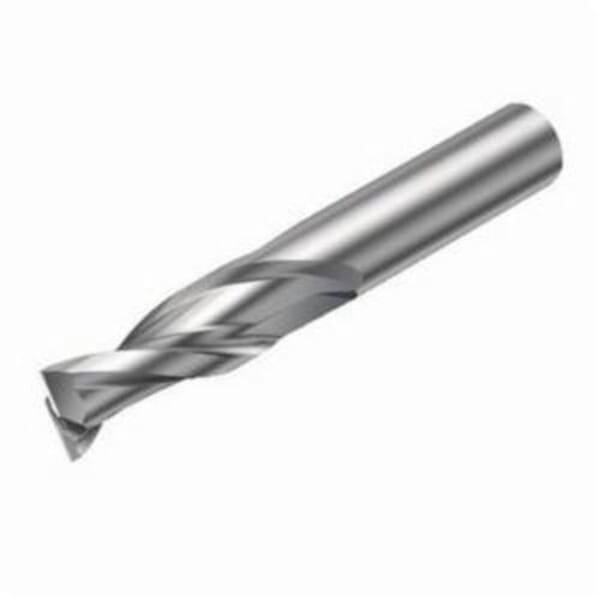

Name: Sandvik Coromant 6260080 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.141 in Length of Cut, 2 Flutes, 0.629 in Dia Shank, 3.622 in OAL, Uncoated
Brand: Sandvik Coromant
SKU: UNISDK039771
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 6260080 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.141 in Length of Cut, 2 Flutes, 0.629 in Dia Shank, 3.622 in OAL, Uncoated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6260080 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.141 in Length of Cut, 2 Flutes, 0.629 in Dia Shank, 3.622 in OAL, Uncoated

ManufacturerSandvik Coromant

Part #826260080

MFG #6260080

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.629 in Diameter Cutter, 3.622 in Overall Length, 1.141 in Length of Cut, 2 Flutes, 0.629 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 2P232-1600-NA H10F, ISO Code: 2P232-1600-NA H10F, Solid Carbide, Uncoated

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2P232-1600-NA H10F

Country of Origin: IT

Cutter Diameter: 0.629 in

Cutting Direction: Right Hand

Finish: Uncoated

Helix Angle: 30 deg

ISO Code: 2P232-1600-NA H10F

Length of Cut: 1.141 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.622 in

Series: CoroMill Plura

Shank Diameter: 0.629 in

Shank Type: Cylindrical

Type: Square

H10F manufacturer grade
1 mm maximum working engagement
1 maximum working engagement ratio
AL chip breaker
Center cutting capability
7 mm Dia core at face
3 cutting length
Without coolant entry
No coolant exit
15.7 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
17 deg radial rake
1 deg axial rake
29 mm L usable
4 maximum regrinds
44 mm overhang
0.15 mm corner radius
90 deg y-axis rot
15 deg ramping

DIN1835-A|DIN6535-HA

Catalog

SDS
