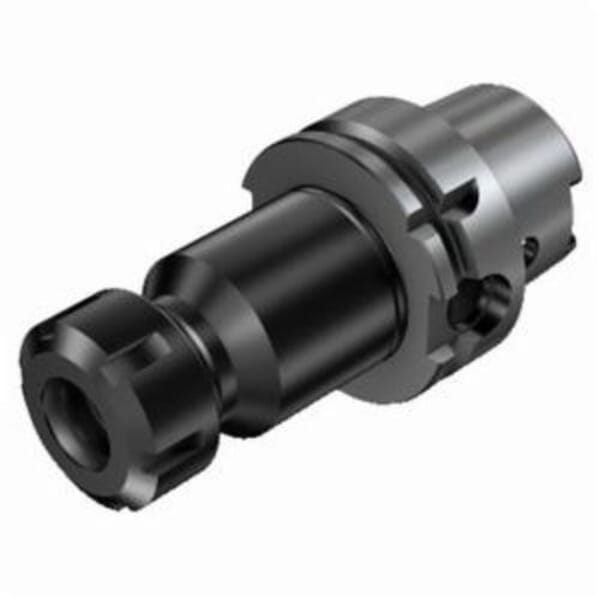

Name: Sandvik Coromant 5759942 Collet Chuck, Modular Connection Shank, ER32 Collet System, 32 mm Chuck
Brand: Sandvik Coromant
SKU: UNISDK032133
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5759942 Collet Chuck, Modular Connection Shank, ER32 Collet System, 32 mm Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 5759942 Collet Chuck, Modular Connection Shank, ER32 Collet System, 32 mm Chuck

ManufacturerSandvik Coromant

Part #826259942

MFG #5759942

Sandvik Coromant Collet Chuck, 132 mm Overall Length, 50 mm Diameter Nose, 100 mm Head Length/Projection, ER32 Collet System, Modular Connection Shank, 32 mm Chuck, HSK63A Taper, 50 mm Diameter Collet Nut, ANSI Code: 392.41014-63 32 100B, ISO Code: 392.41014-63 32 100B, Yes Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 392.41014-63 32 100B

Chuck Size: 32 mm

Collet Nut Diameter: 50 mm

Collet System: ER32

Country of Origin: DE

Head Length/Projection: 100 mm

ISO Code: 392.41014-63 32 100B

Manufacturer Name: Sandvik Coromant

Nose Diameter: 50 mm

Overall Length: 132 mm

Shank Type: Modular Connection

Taper Size: HSK63A

Through Coolant (Yes/No): Yes

5763406 Locking Nut

HSK -A/C -SZ 63 machine side adaptive interface
ER collet (DIN6499-B) -ER32 workpiece side adaptive interface
63 mm Dia body
0 deg body half taper
Steel body
Axial concentric coolant entry
80 bar coolant
Axial concentric coolant exit
33 mm Dia connection
100 mm L body
392.41014 (2) tool style
20 life cycle state

DIN 6499-B

5763406 Locking Nut

Sandvik Coromant Collet Chuck, 132 mm Overall Length, 50 mm Diameter Nose, 100 mm Head Length/Projection, ER32 Collet System, Modular Connection Shank, 32 mm Chuck, HSK63A Taper, 50 mm Diameter Collet Nut, ANSI Code: 392.41014-63 32 100B, ISO Code: 392.41014-63 32 100B, Yes Through Coolant (Yes/No)

Manufacturer Name: Sandvik Coromant

ANSI Code: 392.41014-63 32 100B

Chuck Size: 32 mm

Collet Nut Diameter: 50 mm

Collet System: ER32

Country of Origin: DE

Head Length/Projection: 100 mm

ISO Code: 392.41014-63 32 100B

Manufacturer Name: Sandvik Coromant

Nose Diameter: 50 mm

Overall Length: 132 mm

Shank Type: Modular Connection

Taper Size: HSK63A

Through Coolant (Yes/No): Yes

5763406 Locking Nut

HSK -A/C -SZ 63 machine side adaptive interface
ER collet (DIN6499-B) -ER32 workpiece side adaptive interface
63 mm Dia body
0 deg body half taper
Steel body
Axial concentric coolant entry
80 bar coolant
Axial concentric coolant exit
33 mm Dia connection
100 mm L body
392.41014 (2) tool style
20 life cycle state

DIN 6499-B

5763406 Locking Nut

Sandvik Coromant Collet Chuck, 132 mm Overall Length, 50 mm Diameter Nose, 100 mm Head Length/Projection, ER32 Collet System, Modular Connection Shank, 32 mm Chuck, HSK63A Taper, 50 mm Diameter Collet Nut, ANSI Code: 392.41014-63 32 100B, ISO Code: 392.41014-63 32 100B, Yes Through Coolant (Yes/No)
