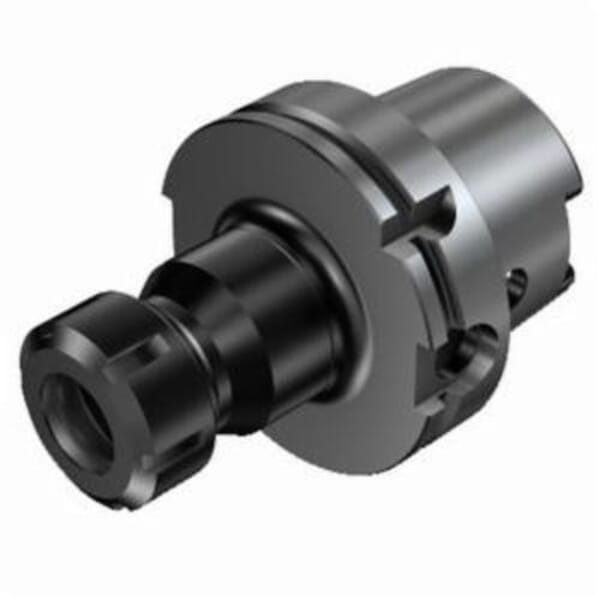

Name: Sandvik Coromant 5759940 Collet Chuck, Tapered Shank, ER50 Collet System, 50 mm Chuck
Brand: Sandvik Coromant
SKU: UNISDK032129
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5759940 Collet Chuck, Tapered Shank, ER50 Collet System, 50 mm Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 5759940 Collet Chuck, Tapered Shank, ER50 Collet System, 50 mm Chuck

ManufacturerSandvik Coromant

Part #826259940

MFG #5759940

Sandvik Coromant Collet Chuck, 180 mm Overall Length, 78 mm Diameter Nose, 130 mm Head Length/Projection, ER50 Collet System, Tapered Shank, 50 mm Chuck, HSK100A Taper, 78 mm Diameter Collet Nut, ANSI Code: 392.41014-100 50 130A, ISO Code: 392.41014-100 50 130A, Yes Through Coolant

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 392.41014-100 50 130A

Chuck Size: 50 mm

Collet Nut Diameter: 78 mm

Collet System: ER50

Country of Origin: DE

Head Length/Projection: 130 mm

ISO Code: 392.41014-100 50 130A

Manufacturer Name: Sandvik Coromant

Nose Diameter: 78 mm

Overall Length: 180 mm

Shank Type: Tapered

Taper Size: HSK100A

Through Coolant (Yes/No): Yes

HSK -A/C -SZ 100 machine side adaptive interface
ER collet (DIN6499-B) -ER50 workpiece side adaptive interface
100 mm Dia body
0 deg body half taper
Steel body
Axial concentric coolant entry
80 bar coolant
Axial concentric coolant exit
52 mm Dia connection
130 mm L body
392.41014 tool style
20 life cycle state

5763410 Locking Nut

DIN 6499-B

Sandvik Coromant Collet Chuck, 180 mm Overall Length, 78 mm Diameter Nose, 130 mm Head Length/Projection, ER50 Collet System, Tapered Shank, 50 mm Chuck, HSK100A Taper, 78 mm Diameter Collet Nut, ANSI Code: 392.41014-100 50 130A, ISO Code: 392.41014-100 50 130A, Yes Through Coolant

Manufacturer Name: Sandvik Coromant

ANSI Code: 392.41014-100 50 130A

Chuck Size: 50 mm

Collet Nut Diameter: 78 mm

Collet System: ER50

Country of Origin: DE

Head Length/Projection: 130 mm

ISO Code: 392.41014-100 50 130A

Manufacturer Name: Sandvik Coromant

Nose Diameter: 78 mm

Overall Length: 180 mm

Shank Type: Tapered

Taper Size: HSK100A

Through Coolant (Yes/No): Yes

HSK -A/C -SZ 100 machine side adaptive interface
ER collet (DIN6499-B) -ER50 workpiece side adaptive interface
100 mm Dia body
0 deg body half taper
Steel body
Axial concentric coolant entry
80 bar coolant
Axial concentric coolant exit
52 mm Dia connection
130 mm L body
392.41014 tool style
20 life cycle state

5763410 Locking Nut

DIN 6499-B

Sandvik Coromant Collet Chuck, 180 mm Overall Length, 78 mm Diameter Nose, 130 mm Head Length/Projection, ER50 Collet System, Tapered Shank, 50 mm Chuck, HSK100A Taper, 78 mm Diameter Collet Nut, ANSI Code: 392.41014-100 50 130A, ISO Code: 392.41014-100 50 130A, Yes Through Coolant
