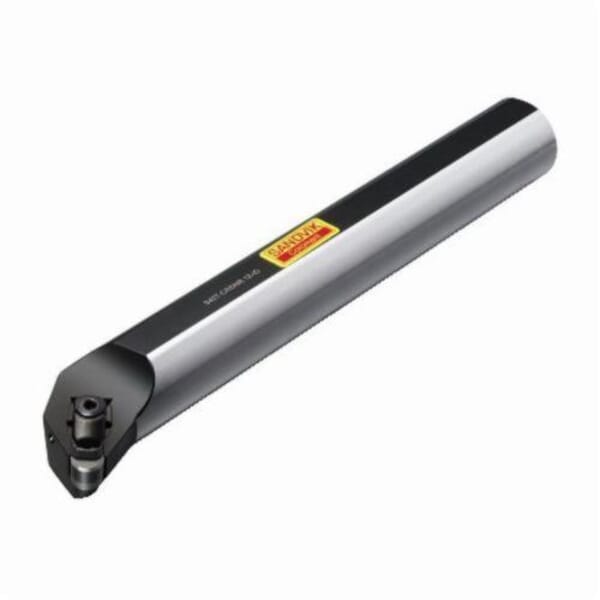

Name: Sandvik Coromant 5751908 T-Max Indexable Boring Bar, S..CRSNR Toolholder, 2.756 in Dia Min Bore, Right Hand of Holder, 11.811 in OAL
Brand: Sandvik Coromant
SKU: UNISDK008231
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5751908 T-Max Indexable Boring Bar, S..CRSNR Toolholder, 2.756 in Dia Min Bore, Right Hand of Holder, 11.811 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5751908 T-Max Indexable Boring Bar, S..CRSNR Toolholder, 2.756 in Dia Min Bore, Right Hand of Holder, 11.811 in OAL

ManufacturerSandvik Coromant

Part #826251908

MFG #5751908

Sandvik Coromant Indexable Boring Bar, Series: T-Max, 2.756 in Minimum Bore, 6.299 in Maximum Bore Depth, 11.811 in Overall Length, 1.575 in Shank Diameter, Cylindrical with 3-Flat Shank, Right Hand of Holder, S..CRSNR Toolholder, Insert Compatibility: RNGN 12 07 00, Round Insert, 1/2 in Inscribed Circle, 0.313 in Insert Thickness, Steel, No Through Coolant

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: DE

Hand of Holder: Right

Inscribed Circle: 1/2 in

Insert Compatibility: RNGN 12 07 00

Insert Shape: Round

Insert Thickness: 0.313 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 6.299 in

Minimum Bore Diameter: 2.756 in

Overall Length: 11.811 in

Series: T-Max

Shank Diameter: 1.575 in

Shank Type: Cylindrical with 3-Flat

Through Coolant (Yes/No): No

Toolholder Type: S..CRSNR

0 deg body machine side
0 deg body workpiece side
Without coolant entry
No coolant exit
37 mm H shank
-6 deg orthogonal rake
145.038 lbf/sq-in coolant pressure
-12 deg inclination
20 life cycle state
Coolant through
0 deg maximum ramping
7.5 Nm torque
Top clamping for flat surface
1/2 in insert seat

5762267 Centre Pin, 5762300 Pressure Plate, 5762504 and 5762507 Shim, 5762831 Clamp, 5763112 Shim Screw, 5764101, 5757354 and 5758305 Key

Turning Applications

5762267 Centre Pin, 5762300 Pressure Plate, 5762504 and 5762507 Shim, 5762831 Clamp, 5763112 Shim Screw, 5764101, 5757354 and 5758305 Key

Manufacturer Name: Sandvik Coromant

Country of Origin: DE

Hand of Holder: Right

Inscribed Circle: 1/2 in

Insert Compatibility: RNGN 12 07 00

Insert Shape: Round

Insert Thickness: 0.313 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 6.299 in

Minimum Bore Diameter: 2.756 in

Overall Length: 11.811 in

Series: T-Max

Shank Diameter: 1.575 in

Shank Type: Cylindrical with 3-Flat

Through Coolant (Yes/No): No

Toolholder Type: S..CRSNR

0 deg body machine side
0 deg body workpiece side
Without coolant entry
No coolant exit
37 mm H shank
-6 deg orthogonal rake
145.038 lbf/sq-in coolant pressure
-12 deg inclination
20 life cycle state
Coolant through
0 deg maximum ramping
7.5 Nm torque
Top clamping for flat surface
1/2 in insert seat

5762267 Centre Pin, 5762300 Pressure Plate, 5762504 and 5762507 Shim, 5762831 Clamp, 5763112 Shim Screw, 5764101, 5757354 and 5758305 Key

Turning Applications

5762267 Centre Pin, 5762300 Pressure Plate, 5762504 and 5762507 Shim, 5762831 Clamp, 5763112 Shim Screw, 5764101, 5757354 and 5758305 Key
