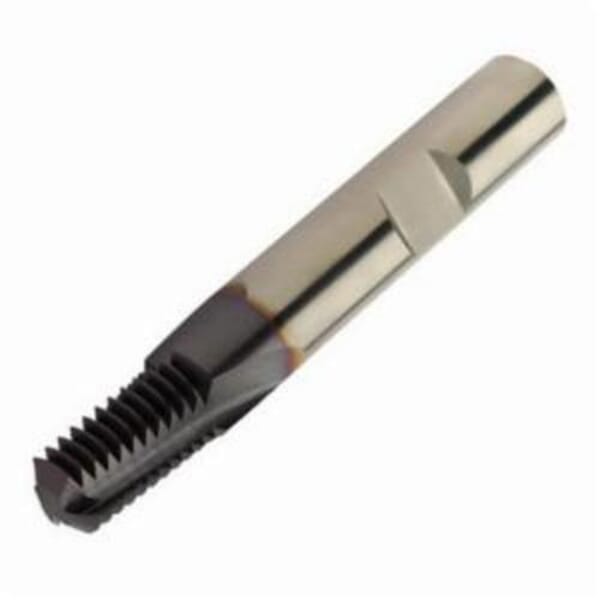

Sandvik Coromant 5743911 CoroMill Plura Right Hand Cutting Threading End Mill, NPT Thread, 2.598 in OAL, 3 Flutes, 0.393 in Dia Shank
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Sandvik Coromant 5743911 CoroMill Plura Right Hand Cutting Threading End Mill, NPT Thread, 2.598 in OAL, 3 Flutes, 0.393 in Dia Shank
ManufacturerSandvik Coromant
Part #826243911
MFG #5743911
Sandvik Coromant Threading End Mill, Right Hand Cutting, Series: CoroMill Plura, NPT Thread, 0.389 in Diameter Cutting, 0.626 in Length of Cut, 2.598 in Overall Length, 3 Flutes, Weldon Flat Shank, 0.393 in Shank Diameter, Solid Carbide, TiAlN Coated
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Sandvik Coromant
Country of Origin:Â DE
Cutting Diameter:Â 0.389 in
Finish:Â TiAlN Coated
Length of Cut:Â 0.626 in
Manufacturer Name:Â Sandvik Coromant
Material:Â Solid Carbide
Number of Flutes:Â 3
Overall Length:Â 2.598 in
Series:Â CoroMill Plura
Shank Diameter:Â 0.393 in
Shank Type:Â Weldon Flat
Thread Type:Â NPT
Type:Â Right Hand Cutting
1630 manufacturer grade
PVD finish
Solid carbide body
4.8 mm Dia core at face
Without coolant entry
No coolant exit
9.9 mm Dia neck
EFW feed direction code
10 deg right hand helix flute
7.5 deg radial rake
8.4 mm H shank
15.92 mm L usable
26 mm overhang
H6 connection diameter tolerance
NPT60 thread form
K, M, N, P, S material grade
F thread profile type
R217.5x..AC..N tool style
80000 r/min
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
