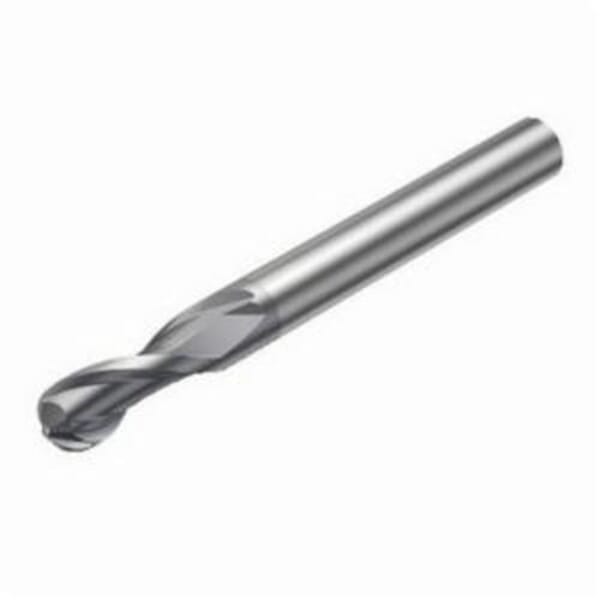

Sandvik Coromant 5743379 CoroMill Plura Ball Nose End Mill, 0.039 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated

Product Line: Sandvik Coromant

MFG #: 5743379

Sandvik Coromant 5743379 CoroMill Plura Ball Nose End Mill, 0.039 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated
Sandvik Coromant 5743379 CoroMill Plura Ball Nose End Mill, 0.039 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated
Sandvik Coromant 5743379 CoroMill Plura Ball Nose End Mill, 0.039 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated
Sandvik Coromant 5743379 CoroMill Plura Ball Nose End Mill, 0.039 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated

Your Price

$187.00 / EA
Pack1/PK

Details

Part#826243379

Manufacturer:Sandvik Coromant

MFG #5743379

Sandvik Coromant End Mill, Ball Nose, Series: NNE, 0.039 in Cutter Dia, 2.244 in Overall Length, 0.059 in Length of Cut, 2 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-01030-AK15G 1610, ISO Code: R216.42-01030-AK15G 1610, Solid Carbide, PVD Coated

Specifications

ANSI Code
R216.42-01030-AK15G 1610
Country of Origin
IT
Cutter Diameter
0.039 in
Cutting Direction
Right Hand
Finish
PVD Coated
Helix Angle
30 deg
ISO Code
R216.42-01030-AK15G 1610
Length of Cut
0.059 in
Manufacturer Name
Sandvik Coromant
Material
Solid Carbide
Number of Flutes
2
Overall Length
2.244 in
Series
CoroMill Plura
Shank Diameter
0.236 in
Shank Type
Cylindrical
Type
Ball Nose

Application

Pre-Machining and Finishing

Item Features

  • 1610 manufacturer grade
  • 10 deg body half taper
  • Straight chip breaker
  • 0.7 mm Dia core at face
  • 3 cutting length
  • Without coolant entry
  • No coolant exit
  • SFW (EFW) feed direction
  • Right hand helix flute
  • 1.5 deg radial rake
  • 1.5 deg axial rake
  • 1.5 mm L usable
  • 21 mm overhang
  • 0 deg lead
  • 0.5 mm corner radius
  • 3 deg ramping
  • 80000 r/min
  • H9 diameter tolerance class cutting
  • 20 life cycle state
  • Optimized grades for all materials and conditions

Standards

DIN1835-A|DIN6535-HA

Documents

826243379

Sandvik Coromant 5743379 CoroMill Plura Ball Nose End Mill, 0.039 in Dia Cutter, 0.059 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated

Description


Sandvik Coromant End Mill, Ball Nose, Series: NNE, 0.039 in Cutter Dia, 2.244 in Overall Length, 0.059 in Length of Cut, 2 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-01030-AK15G 1610, ISO Code: R216.42-01030-AK15G 1610, Solid Carbide, PVD Coated

Product Number: 826243379

Manufacturer: Sandvik Coromant

Prasdsadice:

$187.00 / EA
Pack1/PK

MFG #: 5743379

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R216.42-01030-AK15G 1610

Country of Origin: IT

Cutter Diameter: 0.039 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.42-01030-AK15G 1610

Length of Cut: 0.059 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 2.244 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball Nose

Standards

DIN1835-A|DIN6535-HA
