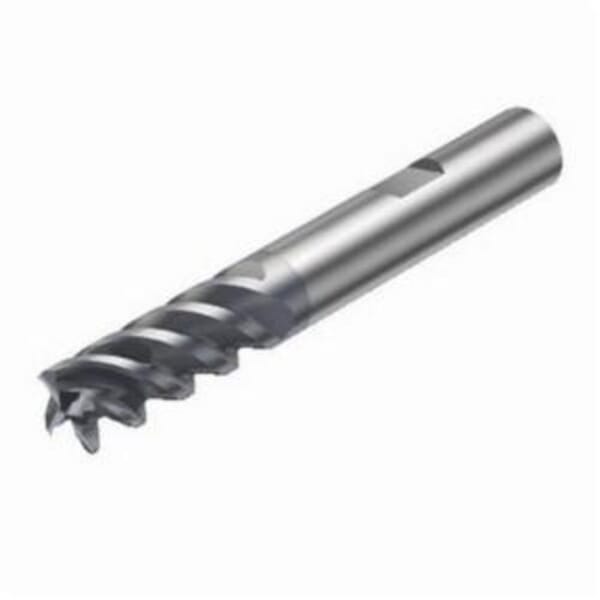

Sandvik Coromant 5743251 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated

Product Line: Sandvik Coromant

MFG #: 5743251

Sandvik Coromant 5743251 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated
Sandvik Coromant 5743251 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated
Sandvik Coromant 5743251 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated
Sandvik Coromant 5743251 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated

Your Price

$352.47 / EA
Pack1/PK

Details

Part#826243251

Manufacturer:Sandvik Coromant

MFG #5743251

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.551 in Diameter Cutter, 3.267 in Overall Length, 1.023 in Length of Cut, 4 Flutes, 0.551 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Weldon Flat Shank, ANSI Code: R216.34-14050-BC26P 1630, ISO Code: R216.34-14050-BC26P 1630, Solid Carbide, PVD Coated

Specifications

ANSI Code
R216.34-14050-BC26P 1630
Country of Origin
DE
Cutter Diameter
0.551 in
Cutting Direction
Right Hand
Finish
PVD Coated
Helix Angle
50 deg
ISO Code
R216.34-14050-BC26P 1630
Length of Cut
1.023 in
Manufacturer Name
Sandvik Coromant
Material
Solid Carbide
Number of Flutes
4
Overall Length
3.267 in
Series
CoroMill Plura
Shank Diameter
0.551 in
Shank Type
Weldon Flat
Type
Square

Item Features

  • 1630 manufacturer grade
  • 12.7 mm H shank
  • 1 mm maximum working engagement
  • 1 maximum working engagement ratio
  • VFD chip breaker
  • Center cutting capability
  • 7.35 mm Dia core at face
  • 9.8 mm Dia core second flute
  • 0.15 mm W corner chamfer
  • L cutting length
  • Without coolant entry
  • Cutting pitch differential
  • No coolant exit
  • 13.7 mm Dia cutting face contact
  • SFW (EFW) feed direction
  • Right helix flute hand
  • 10.5 deg radial rake
  • 13.5 deg axial rake
  • 26 mm L usable
  • 4 maximum regrinds

Standards

DIN1835-B|DIN6535-HB

Documents

826243251

Sandvik Coromant 5743251 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated

Description


Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.551 in Diameter Cutter, 3.267 in Overall Length, 1.023 in Length of Cut, 4 Flutes, 0.551 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Weldon Flat Shank, ANSI Code: R216.34-14050-BC26P 1630, ISO Code: R216.34-14050-BC26P 1630, Solid Carbide, PVD Coated

Product Number: 826243251

Manufacturer: Sandvik Coromant

Prasdsadice:

$352.47 / EA
Pack1/PK

MFG #: 5743251

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R216.34-14050-BC26P 1630

Country of Origin: DE

Cutter Diameter: 0.551 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R216.34-14050-BC26P 1630

Length of Cut: 1.023 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3.267 in

Series: CoroMill Plura

Shank Diameter: 0.551 in

Shank Type: Weldon Flat

Type: Square

Standards

DIN1835-B|DIN6535-HB
