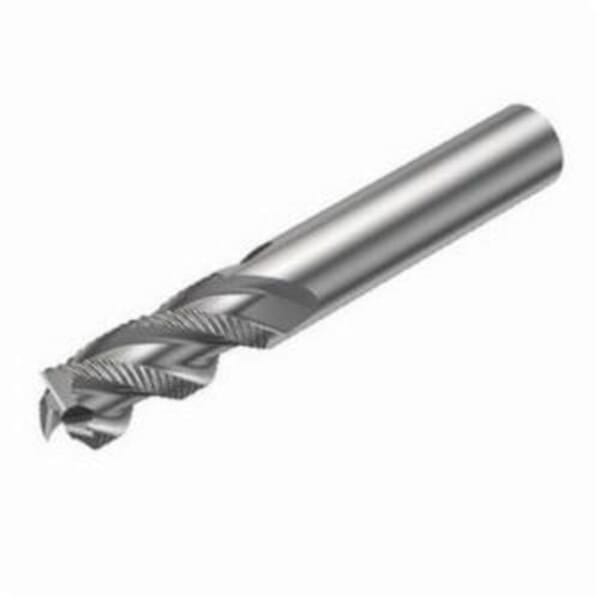

Sandvik Coromant 5743161 CoroMill Plura Square Shoulder End Mill, 0.314 in Dia Cutter, 0.748 in Length of Cut, 3 Flutes, 0.314 in Dia Shank, 2.48 in OAL, Uncoated

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5743161 CoroMill Plura Square Shoulder End Mill, 0.314 in Dia Cutter, 0.748 in Length of Cut, 3 Flutes, 0.314 in Dia Shank, 2.48 in OAL, Uncoated

ManufacturerSandvik Coromant

Part #826243161

MFG #5743161

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.314 in Diameter Cutter, 2.48 in Overall Length, 0.748 in Length of Cut, 3 Flutes, 0.314 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.33-08040-AC19U H10F, ISO Code: R216.33-08040-AC19U H10F, Solid Carbide, Uncoated

$146.20

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.33-08040-AC19U H10F

Country of Origin: DE

Cutter Diameter: 0.314 in

Cutting Direction: Right Hand

Finish: Uncoated

Helix Angle: 40 deg

ISO Code: R216.33-08040-AC19U H10F

Length of Cut: 0.748 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 2.48 in

Series: CoroMill Plura

Shank Diameter: 0.314 in

Shank Type: Cylindrical

Type: Square

H10F manufacturer grade
1 mm maximum working engagement
1 maximum working engagement ratio
Interrupted edge property
Center cutting capability
3.6 mm Dia core at face
0.45 mm W corner chamfer
L cutting length
Without coolant entry
No coolant exit
7.1 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
13.5 deg axial rake
19 mm L usable
2 maximum regrinds
27 mm overhang
90 deg y-axis rot
15 deg ramping

DIN1835-A|DIN6535-HA
