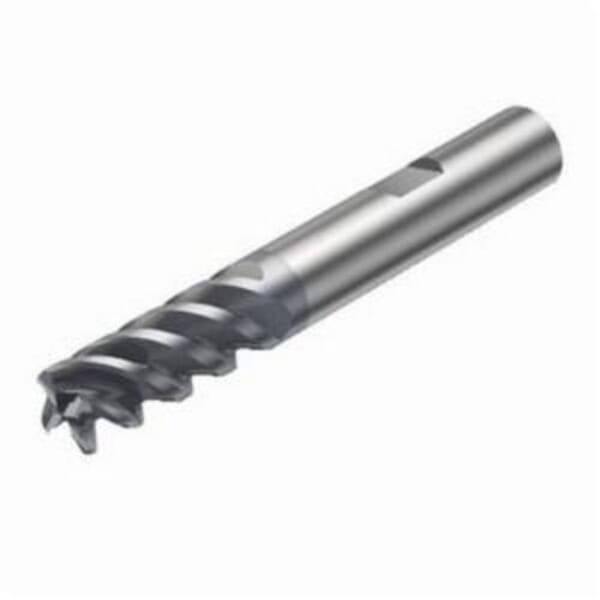

Sandvik Coromant 5743083 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5743083 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826243083

MFG #5743083

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.551 in Diameter Cutter, 3.267 in Overall Length, 1.023 in Length of Cut, 4 Flutes, 0.551 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Weldon Flat Shank, ANSI Code: R216.24-14050GBC26P 1630, ISO Code: R216.24-14050GBC26P 1630, Solid Carbide, PVD Coated

$455.60

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.24-14050GBC26P 1630

Country of Origin: DE

Cutter Diameter: 0.551 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R216.24-14050GBC26P 1630

Length of Cut: 1.023 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3.267 in

Series: CoroMill Plura

Shank Diameter: 0.551 in

Shank Type: Weldon Flat

Type: Square

1630 manufacturer grade
12.7 mm H shank
1 mm maximum working engagement
1 maximum working engagement ratio
VFD chip breaker
Center cutting capability
7.35 mm Dia core at face
9.8 mm Dia core second flute
L cutting length
Without coolant entry
Cutting pitch differential
No coolant exit
8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
13.5 deg axial rake
26 mm L usable
4 maximum regrinds
38 mm overhang

DIN1835-B|DIN6535-HB

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.24-14050GBC26P 1630

Country of Origin: DE

Cutter Diameter: 0.551 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R216.24-14050GBC26P 1630

Length of Cut: 1.023 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3.267 in

Series: CoroMill Plura

Shank Diameter: 0.551 in

Shank Type: Weldon Flat

Type: Square

1630 manufacturer grade
12.7 mm H shank
1 mm maximum working engagement
1 maximum working engagement ratio
VFD chip breaker
Center cutting capability
7.35 mm Dia core at face
9.8 mm Dia core second flute
L cutting length
Without coolant entry
Cutting pitch differential
No coolant exit
8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
13.5 deg axial rake
26 mm L usable
4 maximum regrinds
38 mm overhang

DIN1835-B|DIN6535-HB

Catalog

SDS
