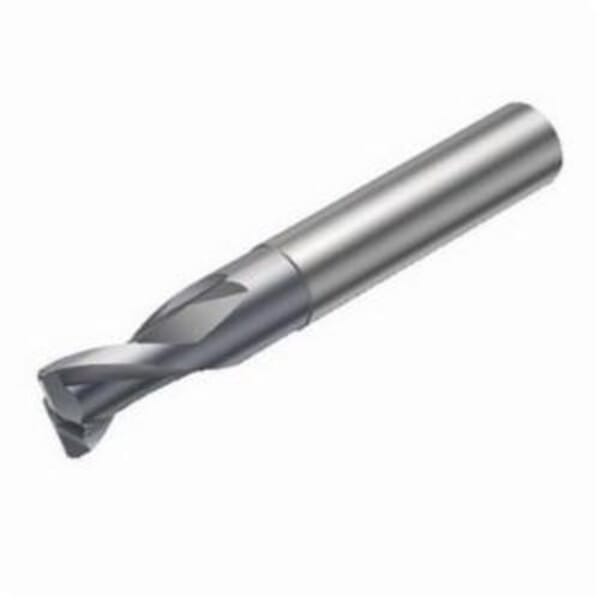

Sandvik Coromant 5743027 CoroMill Plura Square Shoulder End Mill, 0.472 in Dia Cutter, 0.472 in Length of Cut, 2 Flutes, 0.472 in Dia Shank, 3.267 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826243027

MFG #5743027

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.472 in Cutter Dia, 3.267 in Overall Length, 0.472 in Length of Cut, 2 Flutes, 0.472 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.22-12030DAI12G 1610, ISO Code: R216.22-12030DAI12G 1610, Solid Carbide, PVD Coated

$298.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.22-12030DAI12G 1610

Country of Origin: DE

Cutter Diameter: 0.472 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.22-12030DAI12G 1610

Length of Cut: 0.472 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.267 in

Series: CoroMill Plura

Shank Diameter: 0.472 in

Shank Type: Cylindrical

Type: Square

1610 manufacturer grade
0.2 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
8.4 mm Dia core at face
M cutting length
Without coolant entry
No coolant exit
9 mm Dia cutting face contact
11.8 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
1.5 deg radial rake
1.5 deg axial rake
36 mm L usable
3 maximum regrinds
38 mm overhang
1.5 mm corner radius
90 deg y-axis rot
2 deg ramping

DIN1835-A|DIN6535-HA
