Sandvik Coromant 5742841 U-Max Milling Insert, ANSI Code: R216.2-15 T3 12-2 235, R216.2 Insert, 15T312 Insert, Carbide, Manufacturers Grade: 235, Rectangle Shape, Material Grade: H

Product Line: Sandvik Coromant

MFG #: 5742841

Sandvik Coromant 5742841 U-Max Milling Insert, ANSI Code: R216.2-15 T3 12-2 235, R216.2 Insert, 15T312 Insert, Carbide, Manufacturers Grade: 235, Rectangle Shape, Material Grade: H
Sandvik Coromant 5742841 U-Max Milling Insert, ANSI Code: R216.2-15 T3 12-2 235, R216.2 Insert, 15T312 Insert, Carbide, Manufacturers Grade: 235, Rectangle Shape, Material Grade: H
Sandvik Coromant 5742841 U-Max Milling Insert, ANSI Code: R216.2-15 T3 12-2 235, R216.2 Insert, 15T312 Insert, Carbide, Manufacturers Grade: 235, Rectangle Shape, Material Grade: H
Sandvik Coromant 5742841 U-Max Milling Insert, ANSI Code: R216.2-15 T3 12-2 235, R216.2 Insert, 15T312 Insert, Carbide, Manufacturers Grade: 235, Rectangle Shape, Material Grade: H

Your Price

$22.80 / EA
Pack10/PK

Details

Part#826242841

Manufacturer:Sandvik Coromant

MFG #5742841

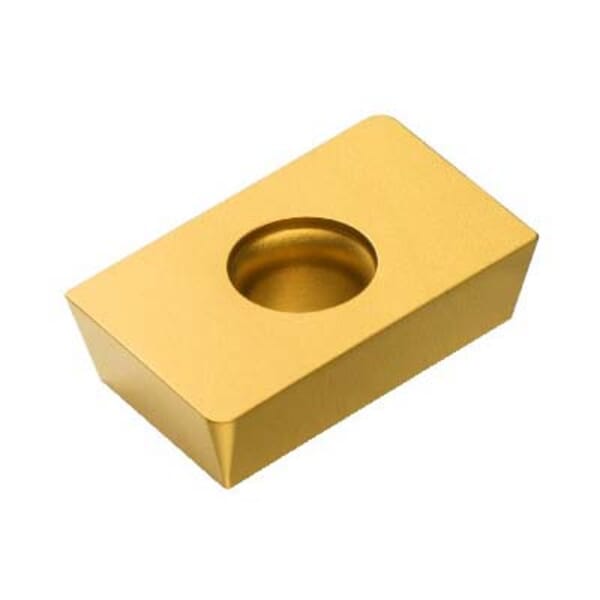

Sandvik Coromant Milling Insert, Series: U-Max, R216.2 Insert, 15T312 Insert, Rectangle Shape, 0.492 in Inscribed Circle, 0.156 in Thickness, Flat Top Chipbreaker, Positive Rake, 90 deg Lead Angle, 0.181 in Diameter Hole, Manufacturers Grade: 235, ANSI Code: R216.2-15 T3 12-2 235, ISO Code: R216.2-15 T3 12-2 235, Right Hand of Insert, Carbide, CVD Coated, Material Grade: H, Hardened Steel Material Application

Specifications

ANSI Code
R216.2-15 T3 12-2 235
Chipbreaker
Flat Top
Country of Origin
SE
Finish
CVD Coated
Hand of Insert
Right
Hole Diameter
0.181 in
Inscribed Circle
0.492 in
Insert Size
15T312
Insert Style
R216.2
ISO Code
R216.2-15 T3 12-2 235
Lead Angle
90 deg
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
235
Material
Carbide
Material Application
Hardened Steel
Material Grade
H
Rake
Positive
Series
U-Max
Shape
Rectangle
Thickness
0.156 in

Application

Medium Applications

Documents

826242841

Sandvik Coromant 5742841 U-Max Milling Insert, ANSI Code: R216.2-15 T3 12-2 235, R216.2 Insert, 15T312 Insert, Carbide, Manufacturers Grade: 235, Rectangle Shape, Material Grade: H

Description


Sandvik Coromant Milling Insert, Series: U-Max, R216.2 Insert, 15T312 Insert, Rectangle Shape, 0.492 in Inscribed Circle, 0.156 in Thickness, Flat Top Chipbreaker, Positive Rake, 90 deg Lead Angle, 0.181 in Diameter Hole, Manufacturers Grade: 235, ANSI Code: R216.2-15 T3 12-2 235, ISO Code: R216.2-15 T3 12-2 235, Right Hand of Insert, Carbide, CVD Coated, Material Grade: H, Hardened Steel Material Application

Product Number: 826242841

Manufacturer: Sandvik Coromant

Prasdsadice:

$22.80 / EA
Pack10/PK

MFG #: 5742841

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R216.2-15 T3 12-2 235

Chipbreaker: Flat Top

Country of Origin: SE

Finish: CVD Coated

Hand of Insert: Right

Hole Diameter: 0.181 in

Inscribed Circle: 0.492 in

Insert Size: 15T312

Insert Style: R216.2

ISO Code: R216.2-15 T3 12-2 235

Lead Angle: 90 deg

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 235

Material: Carbide

Material Application: Hardened Steel

Material Grade: H

Rake: Positive

Series: U-Max

Shape: Rectangle

Thickness: 0.156 in

Application

Medium Applications
