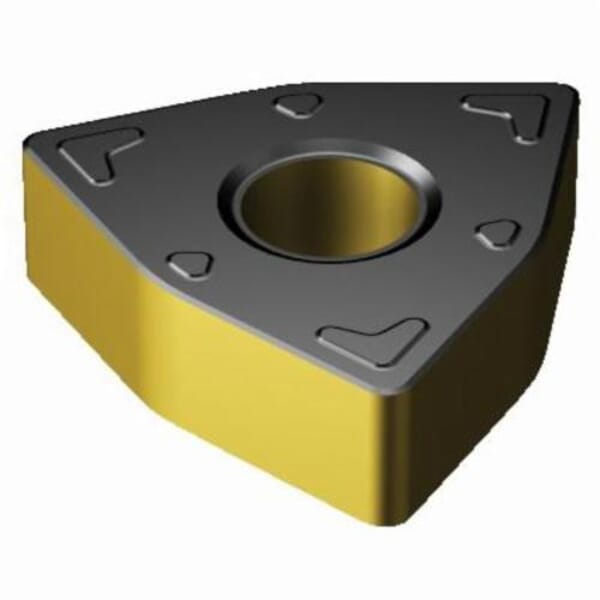

Sandvik Coromant 6042798 T-Max P Turning Insert, ANSI Code: WNMG 433-KRR 3210, WNMG Insert, Material Grade: K, 433 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: 3210
Your Price
Sandvik Coromant 6042798 T-Max P Turning Insert, ANSI Code: WNMG 433-KRR 3210, WNMG Insert, Material Grade: K, 433 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: 3210
Your Price
Sandvik Coromant 6042798 T-Max P Turning Insert, ANSI Code: WNMG 433-KRR 3210, WNMG Insert, Material Grade: K, 433 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: 3210
Description
Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 433 Insert, Trigon, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, KRR Chipbreaker, 0.047 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: WNMG 433-KRR 3210, ISO Code: WNMG 08 04 12-KRR 3210, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron
Product Number: 826242798
Manufacturer: Sandvik Coromant
Price:
MFG #: 6042798
Manufacturer: Sandvik Coromant
Specifications
ANSI Code: WNMG 433-KRR 3210
Chipbreaker: KRR
Corner Radius: 0.047 in
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron
Hole Diameter: 0.2029 in
ISO Code: WNMG 08 04 12-KRR 3210
Included Angle: 80 deg
Inscribed Circle: 1/2 in
Insert Size: 433
Insert Style: WNMG
Manufacturer's Grade: 3210
Material: Carbide
Material Grade: K
Maximum Depth of Cut: 5 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 08
Series: T-Max P, T-Max® P
Shape: Trigon
Thickness: 0.187 in
Item Features
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools
