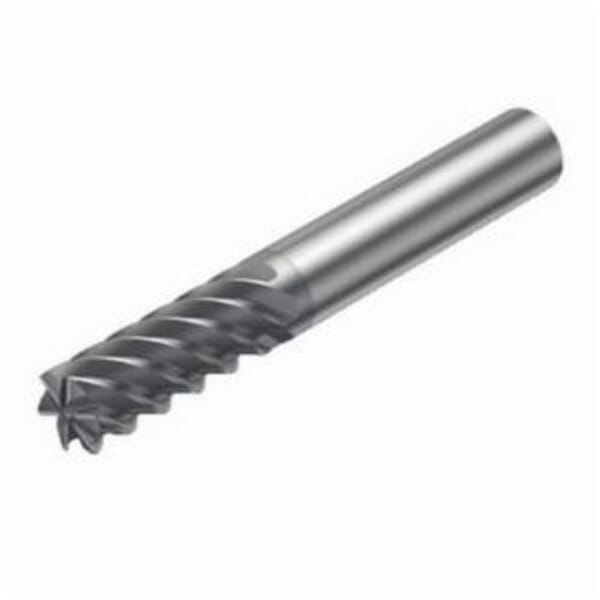

Sandvik Coromant 5742789 CoroMill Plura Square Shoulder End Mill, 0.393 in Dia Cutter, 0.866 in Length of Cut, 6 Flutes, 0.393 in Dia Shank, 2.834 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826242789

MFG #5742789

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.393 in Diameter Cutter, 2.834 in Overall Length, 0.866 in Length of Cut, 6 Flutes, 0.393 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Cylindrical Shank, ANSI Code: R215.36-10050-AC22H 1610, ISO Code: R215.36-10050-AC22H 1610, Solid Carbide, PVD Coated

$323.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R215.36-10050-AC22H 1610

Country of Origin: IT

Cutter Diameter: 0.393 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R215.36-10050-AC22H 1610

Length of Cut: 0.866 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 6

Overall Length: 2.834 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Cylindrical

Type: Square

1610 manufacturer grade
0.2 mm maximum working engagement
1 maximum working engagement ratio
8 mm Dia core at face
0.1 mm W corner chamfer
Without coolant entry
No coolant exit
9.8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
-8.5 deg radial rake
1.5 deg axial rake
22 mm L usable
3 maximum regrinds
32 mm overhang
90 deg y-axis rot
2 deg ramping
80000 r/min
H10 diameter tolerance class cutting
20 life cycle state

DIN1835-A|DIN6535-HA
