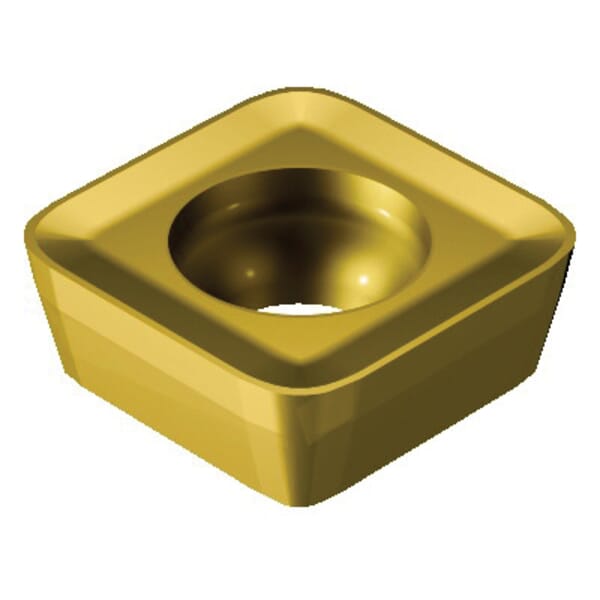

Sandvik Coromant 5742729 CoroMill 210 Single Sided Milling Insert, ANSI Code: R210-09 04 14E-MM 2040, R210 Insert, 090414 Insert, Carbide, Manufacturers Grade: 2040, Squared Shape, Material Grade: M, P, S

Product Line: Sandvik Coromant

MFG #: 5742729

Sandvik Coromant 5742729 CoroMill 210 Single Sided Milling Insert, ANSI Code: R210-09 04 14E-MM 2040, R210 Insert, 090414 Insert, Carbide, Manufacturers Grade: 2040, Squared Shape, Material Grade: M, P, S
Sandvik Coromant 5742729 CoroMill 210 Single Sided Milling Insert, ANSI Code: R210-09 04 14E-MM 2040, R210 Insert, 090414 Insert, Carbide, Manufacturers Grade: 2040, Squared Shape, Material Grade: M, P, S
Sandvik Coromant 5742729 CoroMill 210 Single Sided Milling Insert, ANSI Code: R210-09 04 14E-MM 2040, R210 Insert, 090414 Insert, Carbide, Manufacturers Grade: 2040, Squared Shape, Material Grade: M, P, S
Sandvik Coromant 5742729 CoroMill 210 Single Sided Milling Insert, ANSI Code: R210-09 04 14E-MM 2040, R210 Insert, 090414 Insert, Carbide, Manufacturers Grade: 2040, Squared Shape, Material Grade: M, P, S

Your Price

$25.84 / EA
Pack10/PK

Details

Part#826242729

Manufacturer:Sandvik Coromant

MFG #5742729

Sandvik Coromant Milling Insert, Single Sided, Series: CoroMill 210, R210 Insert, 090414 Insert, Squared, 0.374 in Inscribed Circle, 0.177 in Thickness, 0.374 in Width, 0.374 in Length, MM Chipbreaker, 0.055 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.165 in Hole Dia, Manufacturers Grade: 2040, ANSI Code: R210-09 04 14E-MM 2040, ISO Code: R210-09 04 14E-MM 2040, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel and Titanium Alloys Material Application

Specifications

ANSI Code
R210-09 04 14E-MM 2040
Chipbreaker
MM
Corner Radius
0.055 in
Country of Origin
JP
Finish
CVD-TiCN+Al2O3+TiN Coated
Hand of Insert
Right
Hole Diameter
0.165 in
Inscribed Circle
0.374 in
Insert Size
090414
Insert Style
R210
ISO Code
R210-09 04 14E-MM 2040
Lead Angle
80 deg
Length
0.374 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
2040
Material
Carbide
Material Application
Steel, Stainless Steel and Titanium Alloys
Material Grade
M, P, S
Rake
Positive
Series
CoroMill 210
Shape
Squared
Thickness
0.177 in
Type
Single Sided
Width
0.374 in

Application

Medium Applications

Item Features

  • 4 corner
  • E cutting edge condition
  • Screw clamp mounting

Documents

826242729

Sandvik Coromant 5742729 CoroMill 210 Single Sided Milling Insert, ANSI Code: R210-09 04 14E-MM 2040, R210 Insert, 090414 Insert, Carbide, Manufacturers Grade: 2040, Squared Shape, Material Grade: M, P, S

Description


Sandvik Coromant Milling Insert, Single Sided, Series: CoroMill 210, R210 Insert, 090414 Insert, Squared, 0.374 in Inscribed Circle, 0.177 in Thickness, 0.374 in Width, 0.374 in Length, MM Chipbreaker, 0.055 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.165 in Hole Dia, Manufacturers Grade: 2040, ANSI Code: R210-09 04 14E-MM 2040, ISO Code: R210-09 04 14E-MM 2040, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel and Titanium Alloys Material Application

Product Number: 826242729

Manufacturer: Sandvik Coromant

Prasdsadice:

$25.84 / EA
Pack10/PK

MFG #: 5742729

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R210-09 04 14E-MM 2040

Chipbreaker: MM

Corner Radius: 0.055 in

Country of Origin: JP

Finish: CVD-TiCN+Al2O3+TiN Coated

Hand of Insert: Right

Hole Diameter: 0.165 in

Inscribed Circle: 0.374 in

Insert Size: 090414

Insert Style: R210

ISO Code: R210-09 04 14E-MM 2040

Lead Angle: 80 deg

Length: 0.374 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 2040

Material: Carbide

Material Application: Steel, Stainless Steel and Titanium Alloys

Material Grade: M, P, S

Rake: Positive

Series: CoroMill 210

Shape: Squared

Thickness: 0.177 in

Type: Single Sided

Width: 0.374 in

Item Features

  • 4 corner
  • E cutting edge condition
  • Screw clamp mounting
