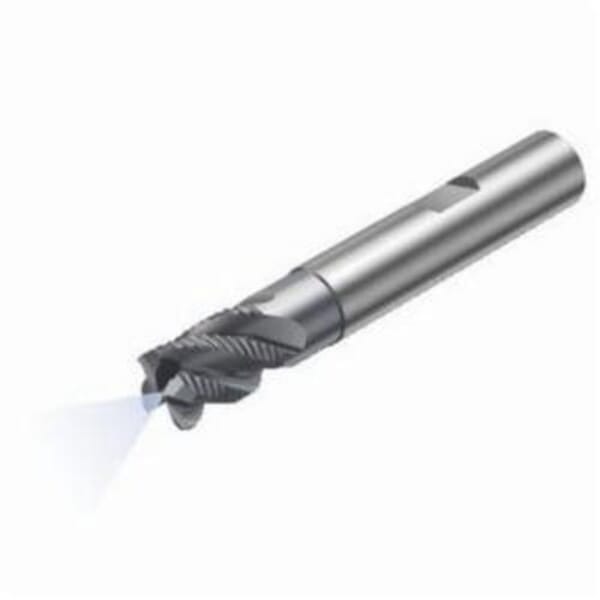

Sandvik Coromant 5742671 CoroMill Plura Square Shoulder End Mill, 0.314 in Dia Cutter, 0.354 in Length of Cut, 4 Flutes, 0.314 in Dia Shank, 2.283 in OAL, PVD Coated

Product Line: Sandvik Coromant

MFG #: 5742671

Sandvik Coromant 5742671 CoroMill Plura Square Shoulder End Mill, 0.314 in Dia Cutter, 0.354 in Length of Cut, 4 Flutes, 0.314 in Dia Shank, 2.283 in OAL, PVD Coated
Sandvik Coromant 5742671 CoroMill Plura Square Shoulder End Mill, 0.314 in Dia Cutter, 0.354 in Length of Cut, 4 Flutes, 0.314 in Dia Shank, 2.283 in OAL, PVD Coated
Sandvik Coromant 5742671 CoroMill Plura Square Shoulder End Mill, 0.314 in Dia Cutter, 0.354 in Length of Cut, 4 Flutes, 0.314 in Dia Shank, 2.283 in OAL, PVD Coated
Sandvik Coromant 5742671 CoroMill Plura Square Shoulder End Mill, 0.314 in Dia Cutter, 0.354 in Length of Cut, 4 Flutes, 0.314 in Dia Shank, 2.283 in OAL, PVD Coated

Your Price

$207.40 / EA
Pack1/PK

Details

Part#826242671

Manufacturer:Sandvik Coromant

MFG #5742671

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.314 in Diameter Cutter, 2.283 in Overall Length, 0.354 in Length of Cut, 4 Flutes, 0.314 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Weldon Flat Shank, ANSI Code: R215.34C08040-DS09K 1640, ISO Code: R215.34C08040-DS09K 1640, Solid Carbide, PVD Coated

Specifications

ANSI Code
R215.34C08040-DS09K 1640
Country of Origin
DE
Cutter Diameter
0.314 in
Cutting Direction
Right Hand
Finish
PVD Coated
Helix Angle
40 deg
ISO Code
R215.34C08040-DS09K 1640
Length of Cut
0.354 in
Manufacturer Name
Sandvik Coromant
Material
Solid Carbide
Number of Flutes
4
Overall Length
2.283 in
Series
CoroMill Plura
Shank Diameter
0.314 in
Shank Type
Weldon Flat
Type
Square

Item Features

  • 1640 manufacturer grade
  • 6.6 mm H shank
  • 1 mm maximum working engagement
  • 1 maximum working engagement ratio
  • Interrupted edge property
  • 4.4 mm Dia core at face
  • 20 bar coolant
  • M cutting length
  • Axial concentric coolant entry
  • Axial concentric coolant exit
  • 7.2 mm Dia cutting face contact
  • 7.5 mm Dia neck
  • SFW (EFW) feed direction
  • Right helix flute hand
  • 10.5 deg radial rake
  • 13.5 deg axial rake
  • 20 mm L usable
  • 2 maximum regrinds
  • 22 mm overhang
  • 0.4 mm corner radius

Standards

DIN1835-B|DIN6535-HB

Documents

826242671

Sandvik Coromant 5742671 CoroMill Plura Square Shoulder End Mill, 0.314 in Dia Cutter, 0.354 in Length of Cut, 4 Flutes, 0.314 in Dia Shank, 2.283 in OAL, PVD Coated

Description


Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.314 in Diameter Cutter, 2.283 in Overall Length, 0.354 in Length of Cut, 4 Flutes, 0.314 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Weldon Flat Shank, ANSI Code: R215.34C08040-DS09K 1640, ISO Code: R215.34C08040-DS09K 1640, Solid Carbide, PVD Coated

Product Number: 826242671

Manufacturer: Sandvik Coromant

Prasdsadice:

$207.40 / EA
Pack1/PK

MFG #: 5742671

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R215.34C08040-DS09K 1640

Country of Origin: DE

Cutter Diameter: 0.314 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 40 deg

ISO Code: R215.34C08040-DS09K 1640

Length of Cut: 0.354 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.283 in

Series: CoroMill Plura

Shank Diameter: 0.314 in

Shank Type: Weldon Flat

Type: Square

Standards

DIN1835-B|DIN6535-HB
