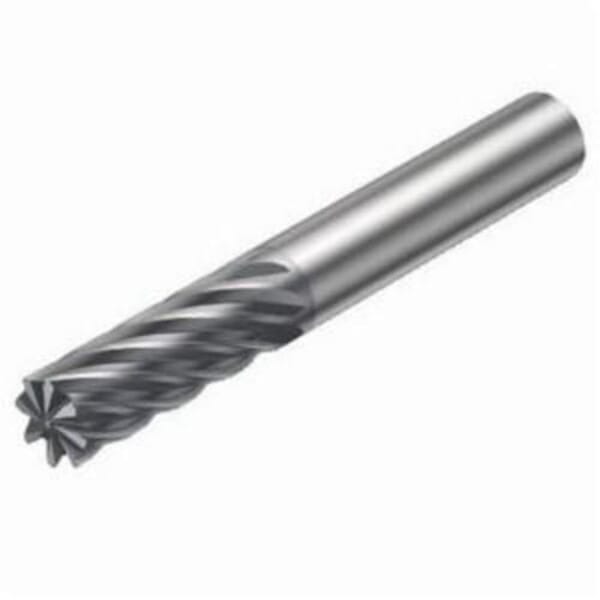

Sandvik Coromant 5742642 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 14 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated

Product Line: Sandvik Coromant

MFG #: 5742642

Sandvik Coromant 5742642 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 14 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated
Sandvik Coromant 5742642 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 14 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated
Sandvik Coromant 5742642 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 14 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated
Sandvik Coromant 5742642 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 14 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated

Your Price

$421.60 / EA
Pack1/PK

Details

Part#826242642

Manufacturer:Sandvik Coromant

MFG #5742642

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.551 in Diameter Cutter, 3.267 in Overall Length, 1.023 in Length of Cut, 14 Flutes, 0.551 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R215.3E-14030-AC26H 1610, ISO Code: R215.3E-14030-AC26H 1610, Solid Carbide, PVD Coated

Specifications

ANSI Code
R215.3E-14030-AC26H 1610
Country of Origin
DE
Cutter Diameter
0.551 in
Cutting Direction
Right Hand
Finish
PVD Coated
Helix Angle
30 deg
ISO Code
R215.3E-14030-AC26H 1610
Length of Cut
1.023 in
Manufacturer Name
Sandvik Coromant
Material
Solid Carbide
Number of Flutes
14
Overall Length
3.267 in
Series
CoroMill Plura
Shank Diameter
0.551 in
Shank Type
Cylindrical
Type
Square

Item Features

  • 1610 manufacturer grade
  • 0.1 mm maximum working engagement
  • 1 maximum working engagement ratio
  • 8.4 mm Dia core at face
  • Without coolant entry
  • No coolant exit
  • 14 mm Dia cutting face contact
  • SFW (EFW) feed direction
  • Right hand helix flute
  • -8.5 deg radial rake
  • 1.5 deg axial rake
  • 26 mm L usable
  • 4 maximum regrinds
  • 38 mm overhang
  • 90 deg y-axis rot
  • 2 deg ramping
  • 80000 r/min
  • H10 diameter tolerance class cutting
  • 20 life cycle state
  • End mills with unequal helix angle for stability and excellent surface finish in high feed side milling operations

Standards

DIN1835-A|DIN6535-HA

Documents

826242642

Sandvik Coromant 5742642 CoroMill Plura Square Shoulder End Mill, 0.551 in Dia Cutter, 1.023 in Length of Cut, 14 Flutes, 0.551 in Dia Shank, 3.267 in OAL, PVD Coated

Description


Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.551 in Diameter Cutter, 3.267 in Overall Length, 1.023 in Length of Cut, 14 Flutes, 0.551 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R215.3E-14030-AC26H 1610, ISO Code: R215.3E-14030-AC26H 1610, Solid Carbide, PVD Coated

Product Number: 826242642

Manufacturer: Sandvik Coromant

Prasdsadice:

$421.60 / EA
Pack1/PK

MFG #: 5742642

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R215.3E-14030-AC26H 1610

Country of Origin: DE

Cutter Diameter: 0.551 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R215.3E-14030-AC26H 1610

Length of Cut: 1.023 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 14

Overall Length: 3.267 in

Series: CoroMill Plura

Shank Diameter: 0.551 in

Shank Type: Cylindrical

Type: Square

Standards

DIN1835-A|DIN6535-HA
