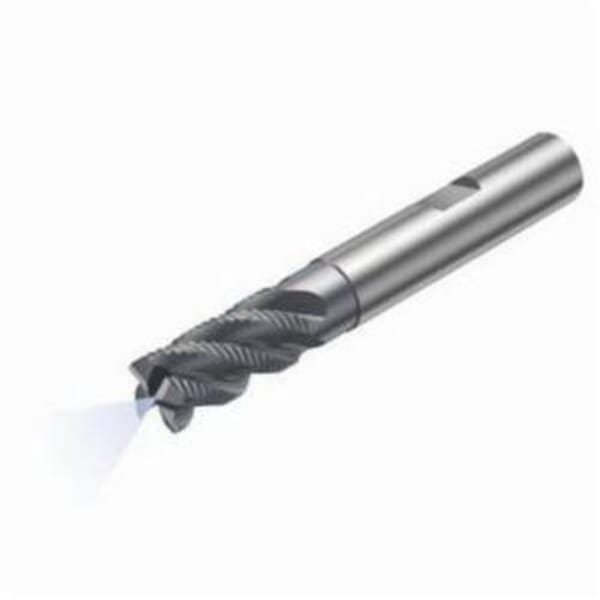

Sandvik Coromant 5742620 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 3.622 in OAL, PVD Coated

Product Line: Sandvik Coromant

MFG #: 5742620

Sandvik Coromant 5742620 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 3.622 in OAL, PVD Coated
Sandvik Coromant 5742620 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 3.622 in OAL, PVD Coated
Sandvik Coromant 5742620 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 3.622 in OAL, PVD Coated
Sandvik Coromant 5742620 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 3.622 in OAL, PVD Coated

Your Price

$636.93 / EA
Pack1/PK

Details

Part#826242620

Manufacturer:Sandvik Coromant

MFG #5742620

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.629 in Diameter Cutter, 3.622 in Overall Length, 1.259 in Length of Cut, 4 Flutes, 0.629 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Weldon Flat Shank, ANSI Code: R215.34C16040-DC32K 1640, ISO Code: R215.34C16040-DC32K 1640, Solid Carbide, PVD Coated

Specifications

ANSI Code
R215.34C16040-DC32K 1640
Country of Origin
DE
Cutter Diameter
0.629 in
Cutting Direction
Right Hand
Finish
PVD Coated
Helix Angle
40 deg
ISO Code
R215.34C16040-DC32K 1640
Length of Cut
1.259 in
Manufacturer Name
Sandvik Coromant
Material
Solid Carbide
Number of Flutes
4
Overall Length
3.622 in
Series
CoroMill Plura
Shank Diameter
0.629 in
Shank Type
Weldon Flat
Type
Square

Item Features

  • 1640 manufacturer grade
  • 14.2 mm H shank
  • 2 mm maximum working engagement
  • 1 maximum working engagement ratio
  • Interrupted edge property
  • 8.8 mm Dia core at face
  • 20 bar coolant
  • L cutting length
  • Axial concentric coolant entry
  • Axial concentric coolant exit
  • 15.2 mm Dia cutting face contact
  • 15.2 mm Dia neck
  • SFW (EFW) feed direction
  • Right helix flute hand
  • 10.5 deg radial rake
  • 13.5 deg axial rake
  • 42 mm L usable
  • 4 maximum regrinds
  • 44 mm overhang
  • 0.4 mm corner radius

Standards

DIN1835-B|DIN6535-HB

Documents

826242620

Sandvik Coromant 5742620 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 3.622 in OAL, PVD Coated

Description


Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.629 in Diameter Cutter, 3.622 in Overall Length, 1.259 in Length of Cut, 4 Flutes, 0.629 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Weldon Flat Shank, ANSI Code: R215.34C16040-DC32K 1640, ISO Code: R215.34C16040-DC32K 1640, Solid Carbide, PVD Coated

Product Number: 826242620

Manufacturer: Sandvik Coromant

Prasdsadice:

$636.93 / EA
Pack1/PK

MFG #: 5742620

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R215.34C16040-DC32K 1640

Country of Origin: DE

Cutter Diameter: 0.629 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 40 deg

ISO Code: R215.34C16040-DC32K 1640

Length of Cut: 1.259 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3.622 in

Series: CoroMill Plura

Shank Diameter: 0.629 in

Shank Type: Weldon Flat

Type: Square

Standards

DIN1835-B|DIN6535-HB
