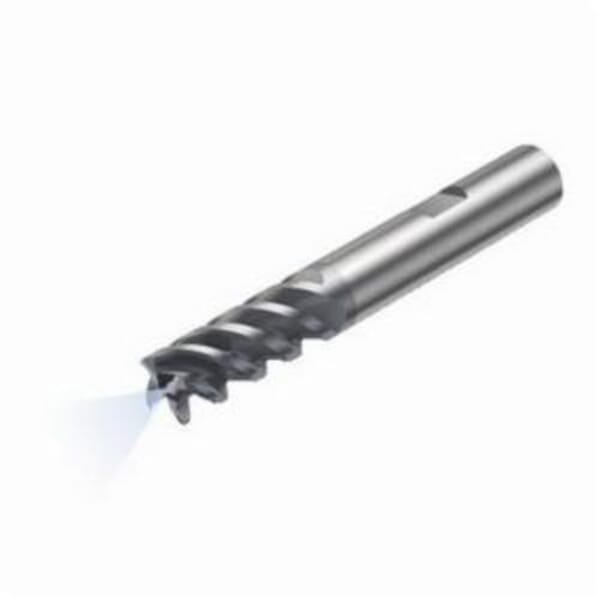

Sandvik Coromant 5742600 CoroMill Plura Square Shoulder End Mill, 0.393 in Dia Cutter, 0.866 in Length of Cut, 4 Flutes, 0.393 in Dia Shank, 2.834 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5742600 CoroMill Plura Square Shoulder End Mill, 0.393 in Dia Cutter, 0.866 in Length of Cut, 4 Flutes, 0.393 in Dia Shank, 2.834 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826242600

MFG #5742600

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.393 in Diameter Cutter, 2.834 in Overall Length, 0.866 in Length of Cut, 4 Flutes, 0.393 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Weldon Flat Shank, ANSI Code: R215.34C10050-BC22P 1640, ISO Code: R215.34C10050-BC22P 1640, Solid Carbide, PVD Coated

$318.47

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R215.34C10050-BC22P 1640

Country of Origin: DE

Cutter Diameter: 0.393 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R215.34C10050-BC22P 1640

Length of Cut: 0.866 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.834 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Weldon Flat

Type: Square

1640 manufacturer grade
8.4 mm H shank
1 mm maximum working engagement
1 maximum working engagement ratio
VFD chip breaker
5.25 mm Dia core at face
20 bar coolant
0.1 mm W corner chamfer
4 cutting length
Axial concentric coolant entry
Axial concentric coolant exit
9.8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
13.5 deg axial rake
22 mm L usable
3 maximum regrinds
32 mm overhang
90 deg y-axis rot

DIN1835-B|DIN6535-HB

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R215.34C10050-BC22P 1640

Country of Origin: DE

Cutter Diameter: 0.393 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R215.34C10050-BC22P 1640

Length of Cut: 0.866 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.834 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Weldon Flat

Type: Square

1640 manufacturer grade
8.4 mm H shank
1 mm maximum working engagement
1 maximum working engagement ratio
VFD chip breaker
5.25 mm Dia core at face
20 bar coolant
0.1 mm W corner chamfer
4 cutting length
Axial concentric coolant entry
Axial concentric coolant exit
9.8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
13.5 deg axial rake
22 mm L usable
3 maximum regrinds
32 mm overhang
90 deg y-axis rot

DIN1835-B|DIN6535-HB

Catalog

SDS
