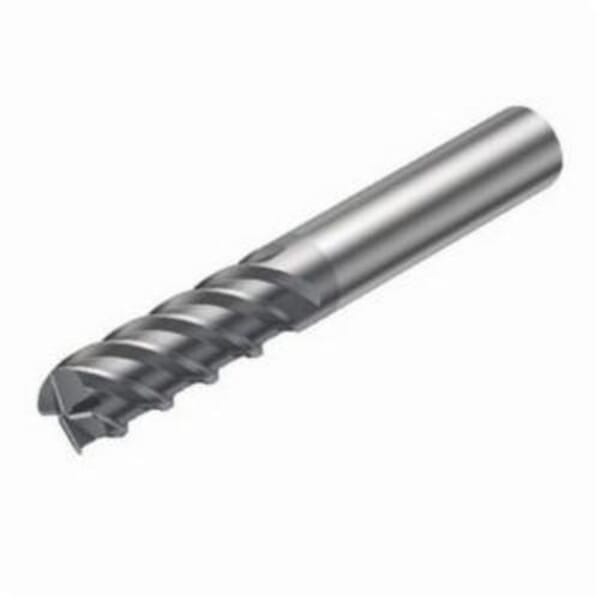

Sandvik Coromant 5742564 CoroMill Plura End Mill, 0.393 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.393 in Dia Shank, 2.834 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5742564 CoroMill Plura End Mill, 0.393 in Dia Cutter, 1.023 in Length of Cut, 4 Flutes, 0.393 in Dia Shank, 2.834 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826242564

MFG #5742564

Sandvik Coromant End Mill, Series: CoroMill Plura, 0.393 in Cutter Dia, 2.834 in Overall Length, 1.023 in Length of Cut, 4 Flutes, 0.393 in Shank Dia, Right Hand Cutting, 50 deg Helix Angle, Cylindrical Shank, ANSI Code: R215.H4-10050DAC07P 1620, ISO Code: R215.H4-10050DAC07P 1620, Solid Carbide, PVD Coated

$245.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R215.H4-10050DAC07P 1620

Country of Origin: DE

Cutter Diameter: 0.393 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R215.H4-10050DAC07P 1620

Length of Cut: 1.023 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.834 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Cylindrical

1620 manufacturer grade
4 face effective cutt edge
32.69 deg cutting edge
Straight chip breaker
8 mm Dia core at face
26 mm L body
Without coolant entry
2 deg minor cutting edge
No coolant exit
3.4 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
-18 deg radial rake
6 deg axial rake
26 mm L usable
3 maximum regrinds
32 mm overhang
500 um minimum Rz roughness value on the face
1.5 mm corner radius
5 deg ramping

DIN1835-A|DIN6535-HA

For face milling and high feed roughing machining
