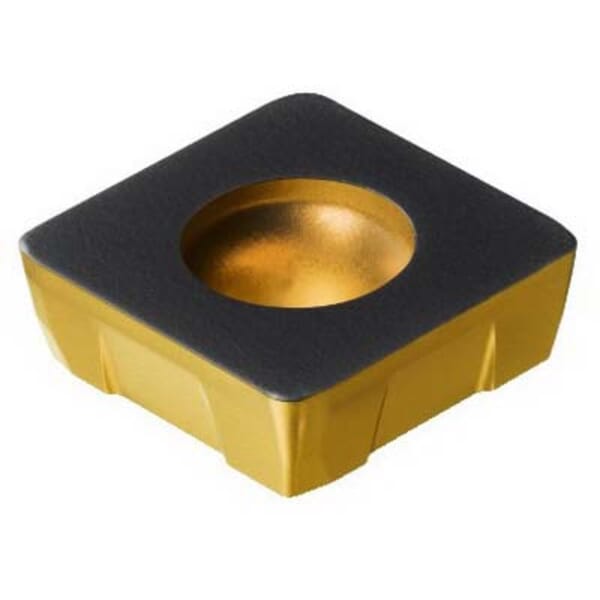

Sandvik Coromant 5742556 CoroMill 210 Milling Insert, ANSI Code: R210-14 05 12M-PM 4220, R210 Insert, 140512 Insert, Carbide, Manufacturers Grade: 4220, Squared Shape, Material Grade: H, K, P

Product Line: Sandvik Coromant

MFG #: 5742556

Sandvik Coromant 5742556 CoroMill 210 Milling Insert, ANSI Code: R210-14 05 12M-PM 4220, R210 Insert, 140512 Insert, Carbide, Manufacturers Grade: 4220, Squared Shape, Material Grade: H, K, P
Sandvik Coromant 5742556 CoroMill 210 Milling Insert, ANSI Code: R210-14 05 12M-PM 4220, R210 Insert, 140512 Insert, Carbide, Manufacturers Grade: 4220, Squared Shape, Material Grade: H, K, P
Sandvik Coromant 5742556 CoroMill 210 Milling Insert, ANSI Code: R210-14 05 12M-PM 4220, R210 Insert, 140512 Insert, Carbide, Manufacturers Grade: 4220, Squared Shape, Material Grade: H, K, P
Sandvik Coromant 5742556 CoroMill 210 Milling Insert, ANSI Code: R210-14 05 12M-PM 4220, R210 Insert, 140512 Insert, Carbide, Manufacturers Grade: 4220, Squared Shape, Material Grade: H, K, P

Your Price

$25.18 / EA
Pack10/PK

Details

Part#826242556

Manufacturer:Sandvik Coromant

MFG #5742556

Sandvik Coromant Milling Insert, Series: CoroMill 210, R210 Insert, 140512 Insert, Squared, 0.571 in Inscribed Circle, 0.187 in Thickness, 0.571 in Width, 0.571 in Length, PM Chipbreaker, 0.039 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.224 in Hole Dia, Manufacturers Grade: 4220, ANSI Code: R210-14 05 12M-PM 4220, ISO Code: R210-14 05 12M-PM 4220, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, P, Hardened Steel, Cast Iron and Steel Material Application

Specifications

ANSI Code
R210-14 05 12M-PM 4220
Chipbreaker
PM
Corner Radius
0.039 in
Country of Origin
US
Finish
CVD-TiCN+Al2O3+TiN Coated
Hand of Insert
Right
Hole Diameter
0.224 in
Inscribed Circle
0.571 in
Insert Size
140512
Insert Style
R210
ISO Code
R210-14 05 12M-PM 4220
Lead Angle
80 deg
Length
0.571 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
4220
Material
Carbide
Material Application
Hardened Steel, Cast Iron and Steel
Material Grade
H, K, P
Rake
Positive
Series
CoroMill 210
Shape
Squared
Thickness
0.187 in
Width
0.571 in

Application

Medium Applications

Documents

826242556

Sandvik Coromant 5742556 CoroMill 210 Milling Insert, ANSI Code: R210-14 05 12M-PM 4220, R210 Insert, 140512 Insert, Carbide, Manufacturers Grade: 4220, Squared Shape, Material Grade: H, K, P

Description


Sandvik Coromant Milling Insert, Series: CoroMill 210, R210 Insert, 140512 Insert, Squared, 0.571 in Inscribed Circle, 0.187 in Thickness, 0.571 in Width, 0.571 in Length, PM Chipbreaker, 0.039 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.224 in Hole Dia, Manufacturers Grade: 4220, ANSI Code: R210-14 05 12M-PM 4220, ISO Code: R210-14 05 12M-PM 4220, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, P, Hardened Steel, Cast Iron and Steel Material Application

Product Number: 826242556

Manufacturer: Sandvik Coromant

Prasdsadice:

$25.18 / EA
Pack10/PK

MFG #: 5742556

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R210-14 05 12M-PM 4220

Chipbreaker: PM

Corner Radius: 0.039 in

Country of Origin: US

Finish: CVD-TiCN+Al2O3+TiN Coated

Hand of Insert: Right

Hole Diameter: 0.224 in

Inscribed Circle: 0.571 in

Insert Size: 140512

Insert Style: R210

ISO Code: R210-14 05 12M-PM 4220

Lead Angle: 80 deg

Length: 0.571 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4220

Material: Carbide

Material Application: Hardened Steel, Cast Iron and Steel

Material Grade: H, K, P

Rake: Positive

Series: CoroMill 210

Shape: Squared

Thickness: 0.187 in

Width: 0.571 in

Application

Medium Applications
