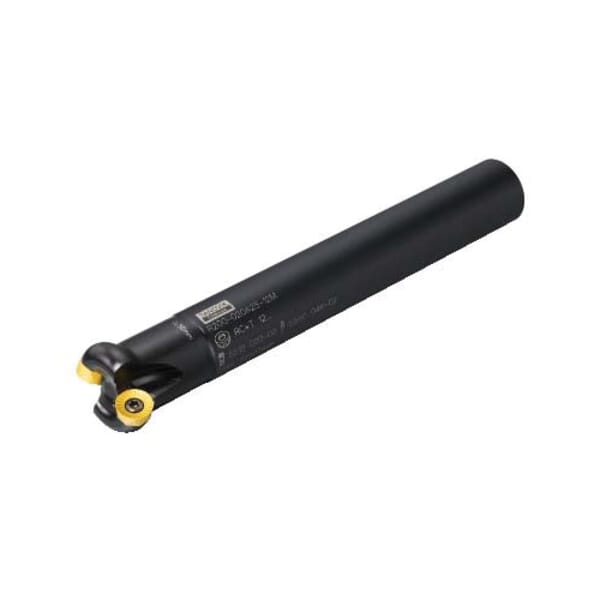

Sandvik Coromant 5742467 CoroMill 200 Face Milling Cutter With Internal Coolant Channel, ANSI Code: R200-015A20-10M, 0.5905 in Dia Cutting, 0.7874 in Dia Shank, 5.9055 in OAL, R200..Axx Insert, 0.1968 in Max Depth of Cut, 0.7874 in Dia Arbor Hole

Product Line: Sandvik Coromant

MFG #: 5742467

Sandvik Coromant 5742467 CoroMill 200 Face Milling Cutter With Internal Coolant Channel, ANSI Code: R200-015A20-10M, 0.5905 in Dia Cutting, 0.7874 in Dia Shank, 5.9055 in OAL, R200..Axx Insert, 0.1968 in Max Depth of Cut, 0.7874 in Dia Arbor Hole
Sandvik Coromant 5742467 CoroMill 200 Face Milling Cutter With Internal Coolant Channel, ANSI Code: R200-015A20-10M, 0.5905 in Dia Cutting, 0.7874 in Dia Shank, 5.9055 in OAL, R200..Axx Insert, 0.1968 in Max Depth of Cut, 0.7874 in Dia Arbor Hole
Sandvik Coromant 5742467 CoroMill 200 Face Milling Cutter With Internal Coolant Channel, ANSI Code: R200-015A20-10M, 0.5905 in Dia Cutting, 0.7874 in Dia Shank, 5.9055 in OAL, R200..Axx Insert, 0.1968 in Max Depth of Cut, 0.7874 in Dia Arbor Hole
Sandvik Coromant 5742467 CoroMill 200 Face Milling Cutter With Internal Coolant Channel, ANSI Code: R200-015A20-10M, 0.5905 in Dia Cutting, 0.7874 in Dia Shank, 5.9055 in OAL, R200..Axx Insert, 0.1968 in Max Depth of Cut, 0.7874 in Dia Arbor Hole
Sandvik Coromant 5742467 CoroMill 200 Face Milling Cutter With Internal Coolant Channel, ANSI Code: R200-015A20-10M, 0.5905 in Dia Cutting, 0.7874 in Dia Shank, 5.9055 in OAL, R200..Axx Insert, 0.1968 in Max Depth of Cut, 0.7874 in Dia Arbor Hole

Your Price

$501.27 / EA
Pack1/PK

Details

Part#826242467

Manufacturer:Sandvik Coromant

MFG #5742467

Sandvik Coromant Face Milling Cutter, Series: CoroMill 200, 0.5905 in Cutting Dia, 5.9055 in Overall Length, 0.1968 in Maximum Depth of Cut, R200..Axx Insert, 2 Inserts, Insert Compatibility: RCKT 10T3M0, 0.7874 in Shank Dia, Cylindrical Shank, 0.7874 in Arbor Hole, Right Hand Cutting, ANSI Code: R200-015A20-10M, ISO Code: R200-015A20-10M, Steel, No

Specifications

ANSI Code
R200-015A20-10M
Arbor Hole Diameter
0.7874 in
Country of Origin
SE
Cutting Diameter
0.5905 in
Cutting Direction
Right Hand
Insert Compatibility
RCKT 10T3M0
Insert Style
R200..Axx
ISO Code
R200-015A20-10M
Manufacturer Name
Sandvik Coromant
Material
Steel
Maximum Depth of Cut
0.1968 in
Number of Inserts
2
Overall Length
5.9055 in
Series
CoroMill 200
Shank Diameter
0.7874 in
Shank Type
Cylindrical
Through Coolant (Yes/No)
No

Application

Pre-Machining

Includes

5763167 Screw and 5764131 Key

Item Includes

5763167 Screw and 5764131 Key

826242467

Sandvik Coromant 5742467 CoroMill 200 Face Milling Cutter With Internal Coolant Channel, ANSI Code: R200-015A20-10M, 0.5905 in Dia Cutting, 0.7874 in Dia Shank, 5.9055 in OAL, R200..Axx Insert, 0.1968 in Max Depth of Cut, 0.7874 in Dia Arbor Hole

Description


Sandvik Coromant Face Milling Cutter, Series: CoroMill 200, 0.5905 in Cutting Dia, 5.9055 in Overall Length, 0.1968 in Maximum Depth of Cut, R200..Axx Insert, 2 Inserts, Insert Compatibility: RCKT 10T3M0, 0.7874 in Shank Dia, Cylindrical Shank, 0.7874 in Arbor Hole, Right Hand Cutting, ANSI Code: R200-015A20-10M, ISO Code: R200-015A20-10M, Steel, No

Product Number: 826242467

Manufacturer: Sandvik Coromant

Prasdsadice:

$501.27 / EA
Pack1/PK

MFG #: 5742467

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R200-015A20-10M

Arbor Hole Diameter: 0.7874 in

Country of Origin: SE

Cutting Diameter: 0.5905 in

Cutting Direction: Right Hand

Insert Compatibility: RCKT 10T3M0

Insert Style: R200..Axx

ISO Code: R200-015A20-10M

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 0.1968 in

Number of Inserts: 2

Overall Length: 5.9055 in

Series: CoroMill 200

Shank Diameter: 0.7874 in

Shank Type: Cylindrical

Through Coolant (Yes/No): No

Item Includes

5763167 Screw and 5764131 Key
