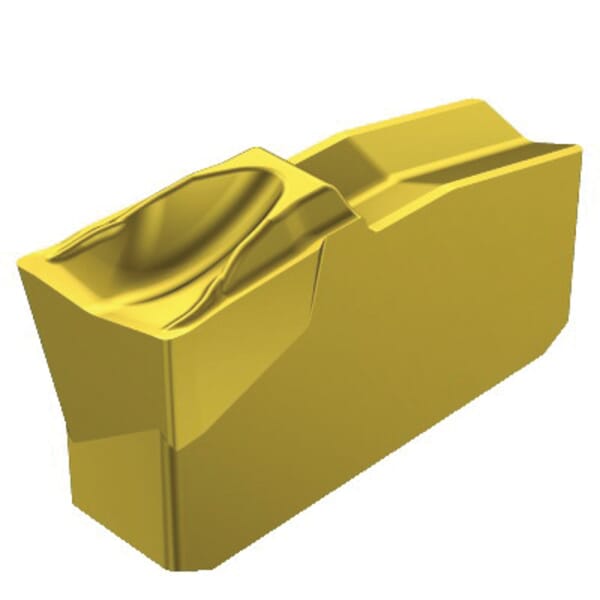

Sandvik Coromant 5741882 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-7E 235, 30 R151.2 Insert, Material Grade: M/P/S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Sandvik Coromant 5741882 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-7E 235, 30 R151.2 Insert, Material Grade: M/P/S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235
ManufacturerSandvik Coromant
Part #826241882
MFG #5741882
Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, R151.2 Insert, 30 Insert, 0.1181 in Cutting Width, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, 0.2672 in Thickness, 0.219 in Length, 7E Chipbreaker, 0.006 in Corner Radius, Manufacturers Grade: 235, ANSI Code: R151.2-300 05-7E 235, ISO Code: R151.2-300 05-7E 235, Right Hand, Carbide, TiCN/TiN, Material Grade: M/P/S
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Sandvik Coromant
ANSI Code:Â R151.2-300 05-7E 235
Chipbreaker:Â 7E
Corner Radius:Â 0.006 in
Country of Origin:Â US
Cutting Width:Â 0.1181 in
Finish:Â CVD-TiCN+TiN Coated, TiCN/TiN
Hand of Insert:Â Right
Insert Size:Â 30
Insert Style:Â R151.2
ISO Code:Â R151.2-300 05-7E 235
Lead Angle:Â 5 deg
Lead Angle Direction:Â Right Hand
Length:Â 0.219 in
Manufacturer Name:Â Sandvik Coromant
Manufacturers Grade:Â 235
Material:Â Carbide
Material Grade:Â M, P, S, M/P/S
Relief Angle:Â 7 deg
Series:Â T-Max Q-Cut
Thickness:Â 0.2672 in
Dedicated geometries and grades for all materials
V-clamped 1-edged insert for good stability
For long overhangs and parting off big components
T-Max Q-cut is a universal single-edge system for parting off, grooving and internal face grooving, suitable for parting off large components and deep grooving applications.
T-Max Q-cut is a universal single-edge system for parting off, grooving and internal face grooving, suitable for parting off large components and deep grooving applications.
