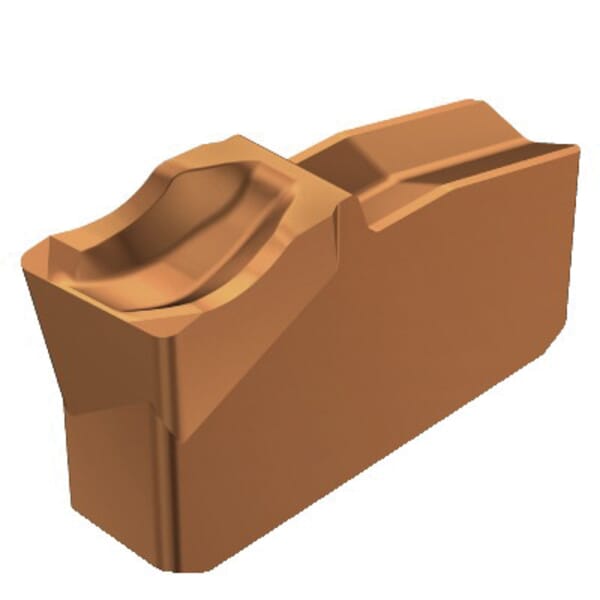

Sandvik Coromant 5741863 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-400 05-4E 1125, 40 R151.2 Insert, Material Grade: K, M, N, P, S, 0.1574 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated

ManufacturerSandvik Coromant

Part #826241863

MFG #5741863

Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, R151.2 Insert, 40 Insert, 0.1574 in Cutting Width, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, 0.3191 in Thickness, 0.275 in Length, 4E Chipbreaker, 0.012 in Corner Radius, Manufacturers Grade: 1125, ANSI Code: R151.2-400 05-4E 1125, ISO Code: R151.2-400 05-4E 1125, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: K, M, N, P, S

$22.52

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R151.2-400 05-4E 1125

Chipbreaker: 4E

Corner Radius: 0.012 in

Country of Origin: US

Cutting Width: 0.1574 in

Finish: PVD-TiAlN Coated

Hand of Insert: Right

Insert Size: 40

Insert Style: R151.2

ISO Code: R151.2-400 05-4E 1125

Lead Angle: 5 deg

Lead Angle Direction: Right Hand

Length: 0.275 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1125

Material: Carbide

Material Grade: K, M, N, P, S

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.3191 in

Dedicated geometries and grades for all materials
V-clamped 1-edged insert for good stability
For long overhangs and parting off big components

For pre-machining applications

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R151.2-400 05-4E 1125

Chipbreaker: 4E

Corner Radius: 0.012 in

Country of Origin: US

Cutting Width: 0.1574 in

Finish: PVD-TiAlN Coated

Hand of Insert: Right

Insert Size: 40

Insert Style: R151.2

ISO Code: R151.2-400 05-4E 1125

Lead Angle: 5 deg

Lead Angle Direction: Right Hand

Length: 0.275 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1125

Material: Carbide

Material Grade: K, M, N, P, S

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.3191 in

Dedicated geometries and grades for all materials
V-clamped 1-edged insert for good stability
For long overhangs and parting off big components

For pre-machining applications
