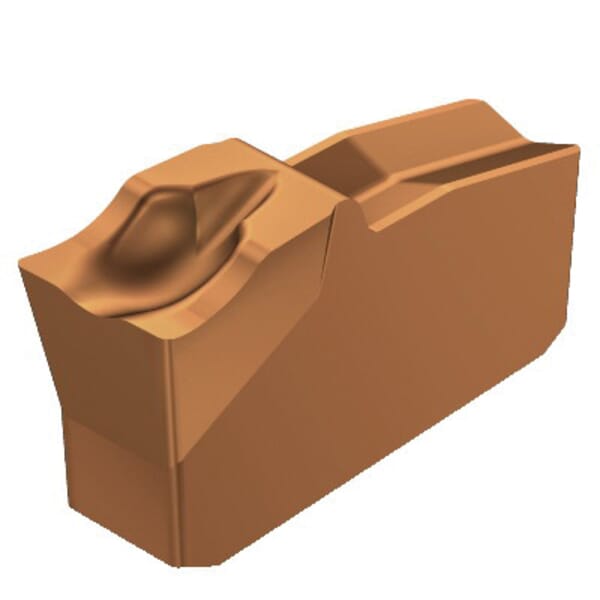

Name: Sandvik Coromant 5741615 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 1125, 30 R151.2 Insert, Material Grade: K/M/N/P/S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, TiAlN
Brand: Sandvik Coromant
SKU: UNISDK009866
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5741615 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 1125, 30 R151.2 Insert, Material Grade: K/M/N/P/S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, TiAlN

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5741615 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 1125, 30 R151.2 Insert, Material Grade: K/M/N/P/S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, TiAlN

ManufacturerSandvik Coromant

Part #826241615

MFG #5741615

Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, R151.2 Insert, 30 Insert, 0.1181 in Cutting Width, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, 0.2672 in Thickness, 0.219 in Length, 5E Chipbreaker, 0.008 in Corner Radius, Manufacturers Grade: 1125, ANSI Code: R151.2-300 05-5E 1125, ISO Code: R151.2-300 05-5E 1125, Right Hand, Carbide, TiAlN, Material Grade: K/M/N/P/S

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R151.2-300 05-5E 1125

Chipbreaker: 5E

Corner Radius: 0.008 in

Country of Origin: JP

Cutting Width: 0.1181 in

Finish: PVD-TiAlN Coated, TiAlN

Hand of Insert: Right

Insert Size: 30

Insert Style: R151.2

ISO Code: R151.2-300 05-5E 1125

Lead Angle: 5 deg

Lead Angle Direction: Right Hand

Length: 0.219 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1125

Material: Carbide

Material Grade: K, M, N, P, S, K/M/N/P/S

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.2672 in

Dedicated geometries and grades for all materials
V-clamped 1-edged insert for good stability
For long overhangs and parting off big components

T-Max Q-cut is a universal single-edge system for parting off, grooving and internal face grooving, suitable for parting off large components and deep grooving applications.

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R151.2-300 05-5E 1125

Chipbreaker: 5E

Corner Radius: 0.008 in

Country of Origin: JP

Cutting Width: 0.1181 in

Finish: PVD-TiAlN Coated, TiAlN

Hand of Insert: Right

Insert Size: 30

Insert Style: R151.2

ISO Code: R151.2-300 05-5E 1125

Lead Angle: 5 deg

Lead Angle Direction: Right Hand

Length: 0.219 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1125

Material: Carbide

Material Grade: K, M, N, P, S, K/M/N/P/S

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.2672 in

Dedicated geometries and grades for all materials
V-clamped 1-edged insert for good stability
For long overhangs and parting off big components

T-Max Q-cut is a universal single-edge system for parting off, grooving and internal face grooving, suitable for parting off large components and deep grooving applications.

Catalog

SDS
